| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | SGS |
| Model Number: | Tapered button bits |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 30000pieces per month |
| Color: | Green/Black/Yellow/Golden | Material: | Tungsten Carbide Buttons |
|---|---|---|---|
| Application: | Tunnel/Quarry/Bench Drilling Works | Coonection:: | Hex22mm Shank Rod |
| High Light: | industrial drill bits,hardened steel drill bits |
||
What can you get from KSQ?
1. Good service for the products purchased
2. Good quality control of products produced
3. Reasonable prices for the products offered
4. Best advices based on the experience and knowledge of well know what to do and how to do of mine works
| Taper button bit - For 22 mm (7⁄8") hex. Rod | ||||||||||
 | Bit Diameter | mm | 32 | 33 | 34 | 35 | 36 | 38 | 40 | 42 |
| inch | 1 1/4 | 1 2/7 | 1 1/3 | 1 3/8 | 1 3/7 | 1 1/2 | 1 4/7 | 1 2/3 | ||
| Tungsten Carbide Button Number | 4, 6, 7 | ||||||||
| Taper/Grade | 6,7,11,12 degree | |||||||||

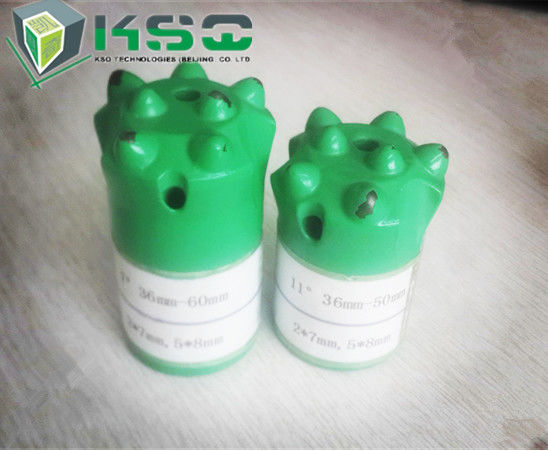

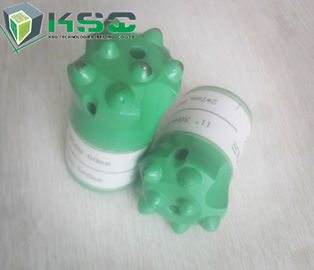

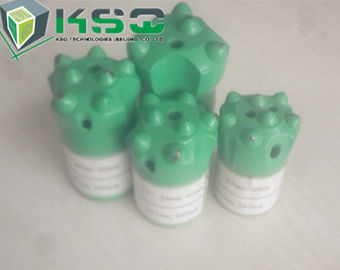

| Tapered Button Bit , 7 ° , 11° , 12° | ||||||
| No. | Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | ||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 32 | 1x8 | 3x8 | 1 | 1 | 0.24 |
| 2 | 33 | 2x7 | 5x7 | 2 | 1 | 0.26 |
| 3 | 34 | 2x7 | 4x7 | 1 | 1 | 0.29 |
| 4 | 35 | 2x7 | 5x8 | 1 | 1 | 0.33 |
| 5 | 36 | 2x7 | 5x8 | 1 | 1 | 0.37 |
| 6 | 38 | 1x8 | 3x9 | 1 | 1 | 0.37 |
| 7 | 40 | 1x8 | 3x9 | 1 | 1 | 0.38 |
| 8 | 41 | 2x7 | 5x9 | 1 | 1 | 0.42 |
| 9 | 42 | 2x8 | 5x9 | 1 | 1 | 0.43 |
