| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | SGS Certification |
| Model Number: | Tapered button bits |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 30000pieces per month |
| Color: | Green/Black/Yellow/Golden | Material: | Tungsten Carbide Buttons |
|---|---|---|---|
| Application: | Tunnel/Quarry/Bench Drilling Works | Coonection:: | Hex22mm Shank Rod |
| High Light: | hardened steel drill bits,milling drill bits |
||
What can you get from KSQ?
1. Good service for the products purchased
2. Good quality control of products produced
3. Reasonable prices for the products offered
4. Best advices based on the experience and knowledge of well know what to do and how to do of mine works
| Taper button bit - For 22 mm (7⁄8") hex. Rod | ||||||||||
 | Bit Diameter | mm | 32 | 33 | 34 | 35 | 36 | 38 | 40 | 42 |
| inch | 1 1/4 | 1 2/7 | 1 1/3 | 1 3/8 | 1 3/7 | 1 1/2 | 1 4/7 | 1 2/3 | ||
| Tungsten Carbide Button Number | 4, 6, 7 | ||||||||
| Taper/Grade | 6,7,11,12 degree | |||||||||

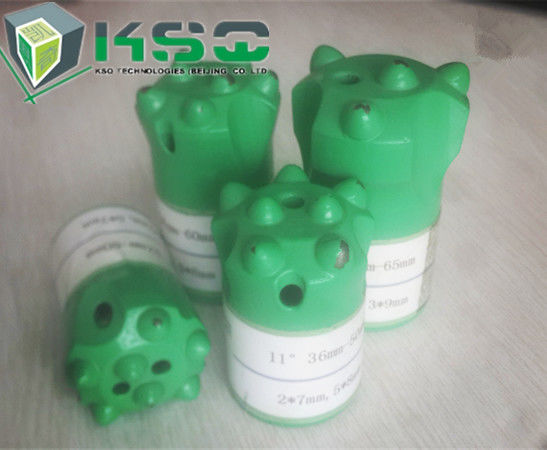

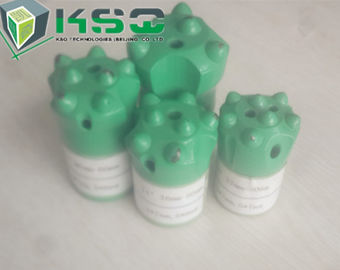

| Tapered Button Bit , 7 ° , 11° , 12° | ||||||
| No. | Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | ||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 32 | 1x8 | 3x8 | 1 | 1 | 0.24 |
| 2 | 33 | 2x7 | 5x7 | 2 | 1 | 0.26 |
| 3 | 34 | 2x7 | 4x7 | 1 | 1 | 0.29 |
| 4 | 35 | 2x7 | 5x8 | 1 | 1 | 0.33 |
| 5 | 36 | 2x7 | 5x8 | 1 | 1 | 0.37 |
| 6 | 38 | 1x8 | 3x9 | 1 | 1 | 0.37 |
| 7 | 40 | 1x8 | 3x9 | 1 | 1 | 0.38 |
| 8 | 41 | 2x7 | 5x9 | 1 | 1 | 0.42 |
| 9 | 42 | 2x8 | 5x9 | 1 | 1 | 0.43 |
Our Activities
2016 - we will attend MINEXPO 2016 in Las vegas of U.S.A
our booth number is North 655,
you are much welcomed to visit our booth there!
KSQ Technologies (Beijing) Co. Ltd.
is a best supplier of quality products,
selling worldwide with it's compeititive prices, professional suggestion and rich exporting experience.
offers the best in cost and performance.
Our products include:
Contact Person: Mr. Yingkai Zhang
Tel: +86 18501231988
