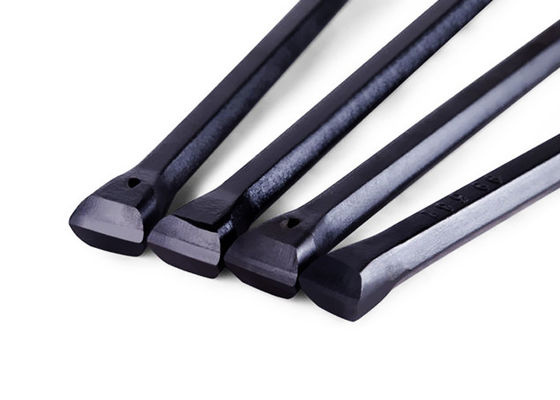

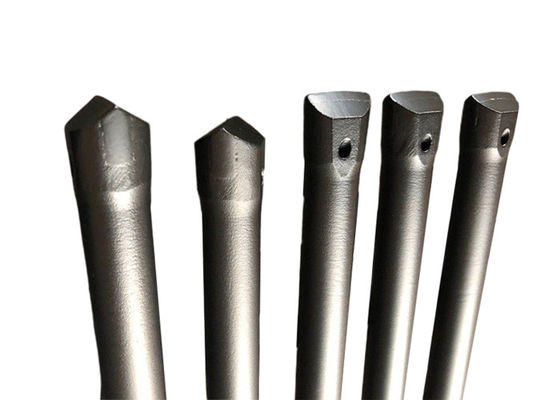

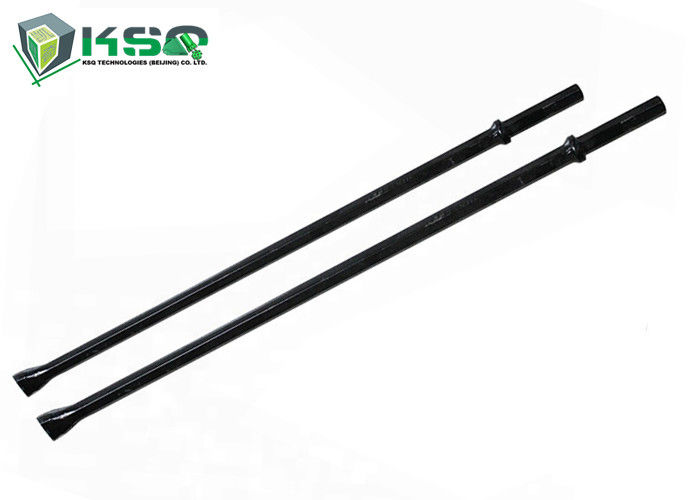

Long Black Integral Rod with Chisel Bit , rock drill tools

Long Black Integral Rod with Chisel Bit , rock drill tools

  • Long Black Integral Rod with Chisel Bit , rock drill tools
  • Long Black Integral Rod with Chisel Bit , rock drill tools
  • Long Black Integral Rod with Chisel Bit , rock drill tools
Long Black Integral Rod with Chisel Bit , rock drill tools
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: SGS Certification
Model Number: Integral Rod with Chisel Bit
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: negotiation
Packaging Details: Wooden box
Delivery Time: 20-25days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 30000 Per Month
Contact Now
Detailed Product Description
Color:: Black Material: Hollow Steel Rod With Chisel Tungsten Carbide
Application: Tunnel, Quarry, Bench Rock Drilling
High Light:

stone drilling tools

,

integral drill rods

Long Black Integral Rod with Chisel Bit , rock drill tools

Name: Integral Drill Rod

Brand:MIROC

Original: China

The Hex22 Integral drills steels, Hex22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry.

Main Features

Shank: Hex22x108mm

Length: 400mm-8000mm

Chisel bit diameter: 26mm-41mm



Integral Steel Rod is used by a hand held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually.



Long Black Integral Rod with Chisel Bit , rock drill tools 0





Length Dia. Weight Part Number Produce Code
mm ft mm kg
800 2 5/8 34 3 4148300035 IH22-C34-800
1600 5 1/4 33 5.2 4148300036 IH22-C33-1600
2400 7 7/8 32 8 4148300037 IH22-C32-2400
3200 10 1/2 31 10.2 4148300038 IH22-C31-3200
4000 13 1/8 30 12.9 4148300039 IH22-C30-4000
4800 15 3/4 29 15.1 4148300040 IH22-C29-4800
5600 18 3/8 28 17.6 4148300041 IH22-C28-5600
6400 21 27 20.1 4148300042 IH22-C27-6400
7200 23 5/8 26 22.5 4148300043 IH22-C26-7200

800 2 5/8 40 3 4148300044 IH22-C40-800
1600 5 1/4 39 5.2 4148300045 IH22-C39-1600
2400 7 7/8 38 8 4148300046 IH22-C38-2400-1
3200 10 1/2 37 10.2 4148300047 IH22-C37-3200
4000 13 1/8 36 12.9 4148300048 IH22-C36-4000
4800 15 3/4 35 15.1 4148300049 IH22-C35-4800
5600 18 3/8 34 17.6 4148300050 IH22-C34-5600
6400 21 33 20.1 4148300051 IH22-C33-6400
7200 23 5/8 32 22.5 4148300052 IH22-C32-7200
8000 26 1/4 31 25 4148300053 IH22-C31-8000
Length Dia. Weight Part Number Produce Code
mm ft mm kg
400 1 1/3 34 1.7 4148300054 IH22-C34-400
800 2 5/8 33 3 4148300055 IH22-C33-800
1200 4 32 4.1 4148300056 IH22-C32-1200
1600 5 1/4 31 5.2 4148300057 IH22-C31-1600
2000 6 5/9 30 6.7 4148300058 IH22-C30-2000

600 2 41 2.4 4148300059 IH22-C41-600
1200 4 40 4.3 4148300060 IH22-C40-1200
1800 6 39 6.2 4148300061 IH22-C39-1800
2400 7 7/8 38 8 4148300062 IH22-C38-2400-2

400 1 1/3 41 1.7 4148300063 IH22-C41-400
800 2 5/8 29 3 4148300064 IH22-C29-800
800 2 5/8 38 3.1 4148300065 IH22-C38-800
1200 4 39 4.3 4148300066 IH22-C39-1200
1600 5 1/4 36 5.2 4148300067 IH22-C36-1600
1800 6 36 6 4148300068 IH22-C36-1800
2000 6 5/9 32 6.7 4148300069 IH22-C32-2000
2400 7 7/8 27 8 4148300070 IH22-C27-2400
3200 10 1/2 27 10.2 4148300071 IH22-C27-3200
3200 10 1/2 32 10.3 4148300072 IH22-C32-3200
6400 21 30 20.1 4148300073 IH22-C30-6400
8000 26 1/4 26 25 4148300074 IH22-C26-8000

drill rod | la barra de taladro | broca Rod | forer tige | Bohrgestänge | çubuk matkap | drill rod hard rock Mining Integral drill steel,Integral drill rod



Long Black Integral Rod with Chisel Bit , rock drill tools 1
