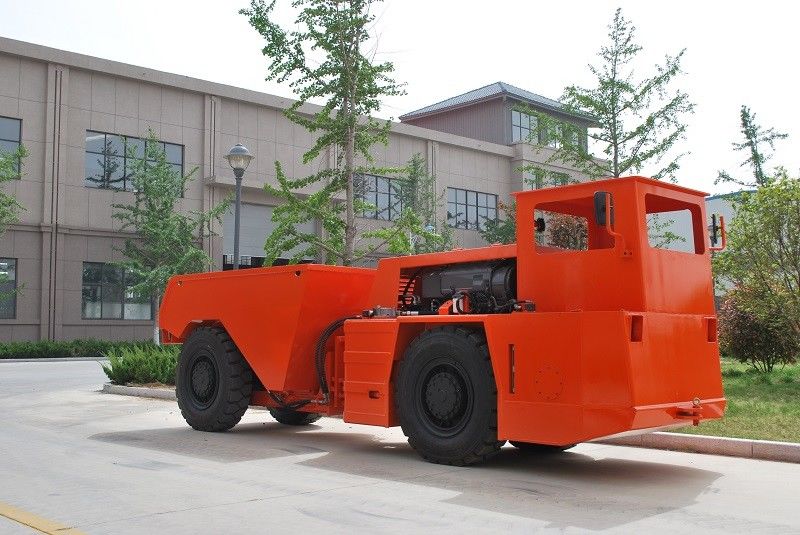

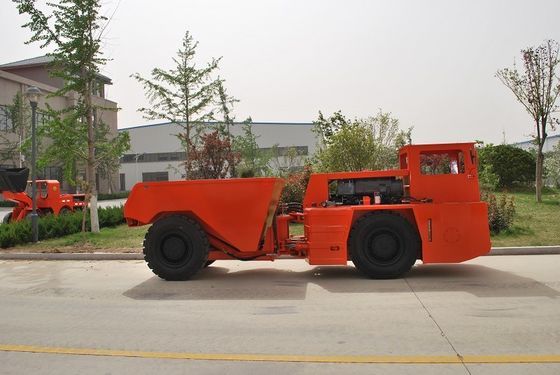

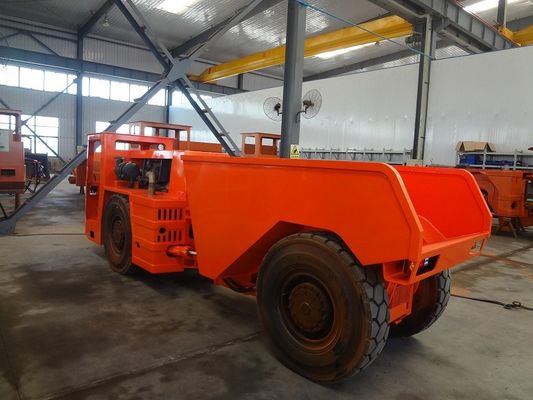

RT-30 Hydropower Heavy Duty Dump Truck For Mining Underground Construction

RT-30 Hydropower Heavy Duty Dump Truck For Mining Underground Construction

RT-30 Hydropower Heavy Duty Dump Truck  For Mining Underground Construction
RT-30 Hydropower Heavy Duty Dump Truck  For Mining Underground Construction
RT-30 Hydropower Heavy Duty Dump Truck  For Mining Underground Construction
Product Details:
Place of Origin: China
Brand Name: ROXMECH
Certification: API/CE Certificate
Model Number: RT-30 Low Profile Dump Truck
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set Low Profile Dump Truck
Price: negotiation
Packaging Details: Nude Package or Based on Customer's Requirements
Delivery Time: 1-3 Months
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 3pcs per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide And High Quality Carbon Steel Use: Tunneling, Mining, Quarrying, Construction
Processing Type: CNC Milling And Proprietary Heat Treatment Process Diesel Engine: OM460 LA
Loading Capacity: 30000kg Name: Underground Mining Dump Truck
Dimension: 10135mm×2800mm×2580mm
High Light:

mining dump trucks


heavy duty Dump Truck

 RT-30 Hydropower Low Profile Dump Truck For Mining Underground and Quarrying Construction
1. Describtion
The RT-30 underground dump truck is capacity of 30 tons, with articulation oscillation. The new design model improves not only productivity and underground tunnel transportation, but also have a very high safety, serviceability and comfort.
2. Characteristics


1. Engine brake
2. Lockup for steering
3. Central Oscillation
4. Three stage engine, low gas emission

Safe Operation

1. SAHR brake system
2. ROPS/FOPS Certificate & ROPS/FOPS

Efficient Production Matched Power train
Comfortable Operation

1. Ergonomics Canopy with generous operation room
2. Adjustable operator’s seat

3. Main Technical Parameter

Pos. Item Parameters
1 Dimension (tramming): 10135mm×2800mm×2580mm
2 Bucket Capacity(SAE): 15m³
3 Operating Weight: 30000 kg
4 Rated Loading Capacity: 30000 kg
5 Axle weights without load

Front Axle: 19700kg
Rear Axle: 10300kg

6 Axle weights with load

Front Axle: 28780kg
Rear Axle: 31220kg

7 Driving Speeds Forward and Reverse

First Gear: 0~5.1km/h
Second Gear: 0~9.2km/h
Third Gear: 0~15.2km/h
Forth Gear: 0~27.2km/h

8 Bucket motion times

Raising Time: 14s
Lowering Time: 10s

9 Max. Lifting Height 5715mm
10 Discharging Angle: 65°
11 Wheel Base: 5245mm
12 Leaving Angle: 15°
13 Rear Axle Oscillation Angle:
14 Min. Off-ground Clearance: 357mm
15 Max. Grade ability: 25%
16 Min. Steering Radius

Outer: 8851mm/
Inner: 5114mm

17 Max. Steering Angle: ± 42 °

4. Main Configuration

Diesel Engine

Manufacturer: Mercedes Benz
Model: OM460 LA
Rated Power: 315KW@1800 rpm
Features: Water Cooled, Turbo Charged

Hydraulic Torque Converter

Manufacture: DANA
Model: CL8000 Series

Power Shift Transmission

Manufacture: DANA
Model: R6000 Series
Features: F4/R4 Electronic control

Drive Axle

Manufacture: KESSLER
Model: D91


Manufacture: China Tyre Company
Model: 26.5R25

Electric System

Alternator: 28V 80A
Batteries: 12VX2 165Ah
Lights: Front: 7 pcs, Rear: 3 pcs
Sensors: Fuel/Oil level sensors, Sensors of service, steering, brake system, Limit Sensor.
Alarm: Red/green indicators, Rotation Warning Lamp, Low oil level warning/Oil pressure warning
Monitor Screen: IFM CR1083
Controller: IFM CR2532


Features: 1. ROPS/FOPS approved
2. Adjustable Spring Cushioned Seat with Three Points Belt

Hydraulic System

Components: Servicing system, steering system, braking system, fill oil system
Features: 1. Service and steering hydraulic systems are equipped with PARKER.
2. Hydraulic Pumps and Valves, and brake hydraulic system equipped with Mico hydraulic components.
3. The oil flow from steering hydraulic pump is directed to bucket hydraulics when steering is not used.
4. Rated Pressure of service hydraulics: 19Mpa

Braking System

Components:Model: Service/Parking/Emergency brake
Features: These brakes are spring applied, hydraulically released type (SAHR),with fully enclosed, multiple wet discs that are forced-cooled at each wheel end.

Optional equipment

Lincoln auto lube with timer
Ansul Check fire, auto fire suppression
Fully Enclosed Cab with Air Conditioner
Customized Bucket Capacity

5. Warranty Period:
12 months (or 2000 working hours, whichever comes first) it begins from the day that the machines are delivered to the customer. The warranty parts include engine, Torque Converter and Transmission, hydraulic components, exclusive of the quick-wearing parts which include hydraulic oil, filters, tubes, tires, electrics, etc.


6. Applications
•  Underground Mining
•  Hydropower Tunneling
•  Roadway/Railway Tunneling
•  Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)
