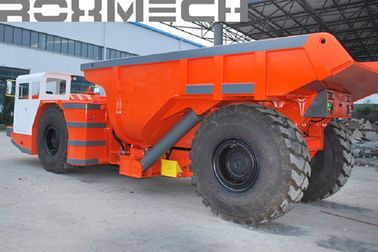

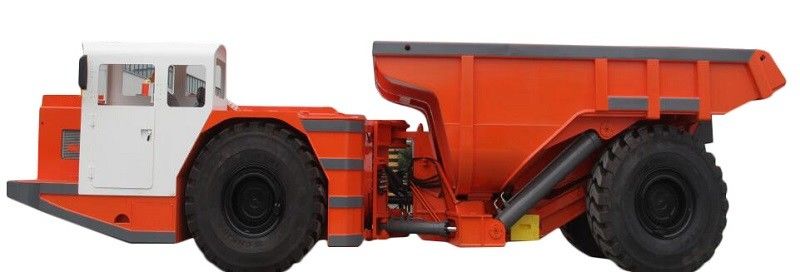

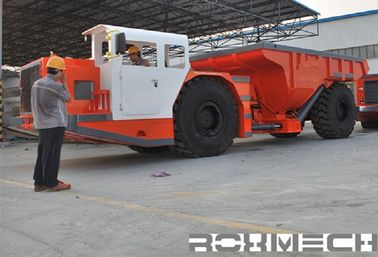

RT-5 Underground Dump Truck For Quarrying Tunneling Construction , One Year Warrenty

RT-5 Underground Dump Truck For Quarrying Tunneling Construction , One Year Warrenty

RT-5 Underground Dump Truck For Quarrying Tunneling Construction , One Year Warrenty
RT-5 Underground Dump Truck For Quarrying Tunneling Construction , One Year Warrenty
RT-5 Underground Dump Truck For Quarrying Tunneling Construction , One Year Warrenty
Product Details:
Place of Origin: China
Brand Name: ROXMECH
Certification: API/CE Certificate
Model Number: RT-5 Low Profile Dump Truck
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set Low Profile Dump Truck
Price: negotiation
Packaging Details: Nude Package or Based on Customer's Requirements
Delivery Time: 1-3 Months
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 3pcs per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide And High Quality Carbon Steel Use: Tunneling, Mining, Quarrying, Construction
Processing Type: CNC Milling And Proprietary Heat Treatment Process Color: Yellow Or Orange
Name: Underground Truck, Mining Truck Warrenty: One Year
After-sales Service Provided: Overseas Service Center Available
High Light:

mining dump trucks


heavy duty Dump Truck

RT-5 Low Profile Dump Truck Used For Mining Underground and Tunneling Construction


1. Technical Information

RT-5 underground mining truck mainly used in underground mines, power system use DEUTZ engine, the transmission system with DANA hydraulic torque converter and power shift transmission, convenient operation, driving stable. Braking system uses spring brake, hydraulic lift brake, safe and reliable.


2. Charactoristics


1. Full hydraulic, center-point articulation, power steering with two double acting cylinders.

2. Steering controlled by stick.

Safe Operation

1. SAHR brake system

2. ROPS/FOPS Certificate

Efficient Production

1. Matched Power train

2. Lube Layout to maintain

Comfortable Operation

1. Ergonomics Canopy with generous operation room

2. Adjustable operator’s seat


3. Main Technical Parameter

Pos. Item Parameters
1 Dimension (tramming): 5600mm×1400mm×2000mm
2 Bucket Capacity(SAE): 2.5m³
3 Operating Weight: 6500 kg
4 Rated Loading Capacity: 5000 kg
5 Axle weights without load

Front Axle: 4000 kg

Rear Axle: 2500 kg

6 Axle weights with load

Front Axle: 5700 kg

Rear Axle: 5800 kg

7 Driving Speeds Forward and Reverse

First Gear: 0~4.7 km/h

Second Gear: 0~10.0 km/h

Third Gear: 0~18.4 km/h

8 Bucket motion times

Raising Time: 7s

Lowering Time: 5s

9 Max. traction force 60KN
10 Discharging Angle: 65°
11 Wheel Base: 3230mm
12 Rear Axle Oscillation Angle:
13 Min. Off-ground Clearance: 240mm
14 Max. Grade ability: 25%
15 Min. Steering Radius

Outer: 5180mm/

Inner: 3410mm

16 Max. Steering Angle: ± 42 °


4. Main Configuration

Diesel Engine

Manufacturer: DEUTZ

Model: D914L04

Rated Power: 58KW@2300rpm

Features: Air-Cooled

Hydraulic Torque Converter

Manufacture: DANA

Model: RT1201FT20321

Features: The power train with integral converter and modulated 3-speed shifting in both forward and reverse.

Drive Axle

Manufacture: KSQ Technologies Co, Ltd.

Model: UK05



Manufacture: China Tyre Company

Model: 10.00-20

Electric System


Batteries: 12VX2 80Ah

Sensors: Fuel/Oil level sensors, Sensors of service, steering, brake system, Limit Sensor

Alarm: Low oil level warning/

Oil pressure warning



Features: 1. ROPS/FOPS approved

Adjustable Spring Cushioned Seat with Three Points Belt

Hydraulic System


Components: Servicing system, steering system, braking system, fill oil system

Braking System


Components:Model: Service/Parking/Emergency brake

Features: These brakes are the Spring Applied, Hydraulically Released type, with fully enclosed, multiple wet discs that are at each wheel end.


5. Warranty Period

1 year (or 12 months, 2000 working hours, whichever comes first) it begins from the day that the machines are delivered to the customer. During the warranty period, we will provide free accessories if the damage is caused by our quality problems, but we can’t guarantee the wearing parts if the damage is caused by improperly operated or other man-made reasons.


6. Applications

•  Underground Mining

•  Hydropower Tunneling

•  Roadway/Railway Tunneling

•  Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)
