| Place of Origin: | China |
| Brand Name: | ROXMECH |
| Certification: | CE Certified |
| Model Number: | RL-2 Load Haul Dump Machine |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Suitable for Long Transportation |
| Delivery Time: | 1 Month |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10+Unit+Month |
| Color:: | Orange/White/Yellow | Application:: | Underground Mining |
|---|---|---|---|
| Place Of Origin:: | China | Engine:: | F6L912W/QSB4.5 |
| Power:: | Chisel Engine | ||
| High Light: | underground lhd machines,lhd load haul dump |
||

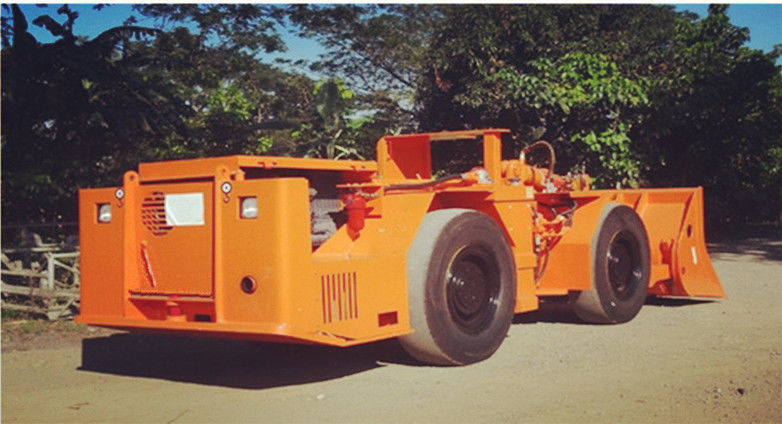

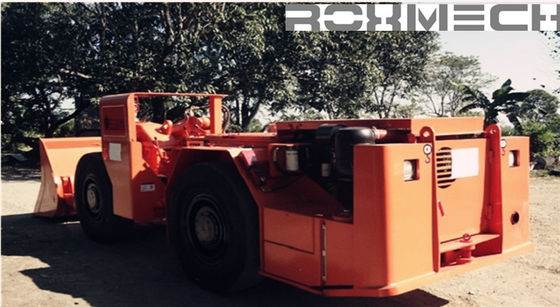

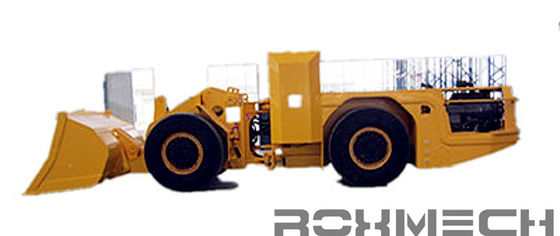

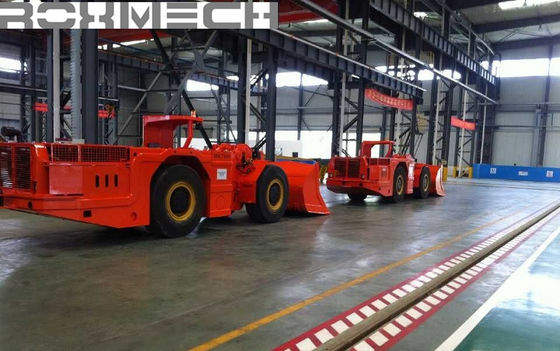

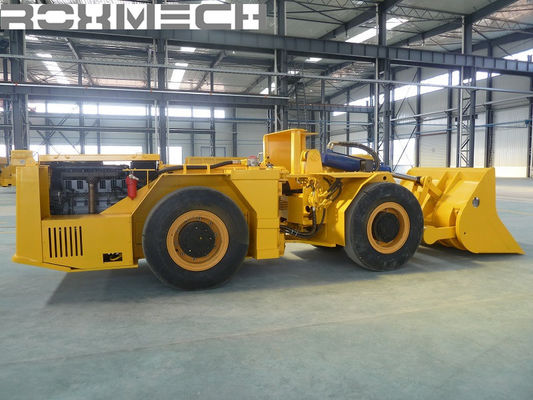

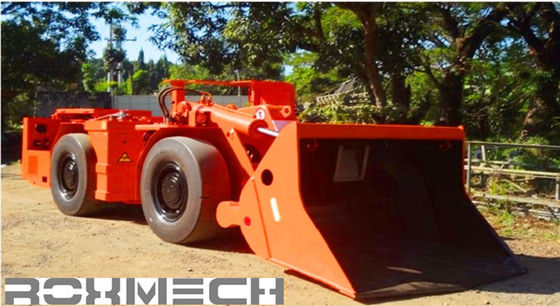

2 Cubic Meter LHD Loader with CE Certificate RL-2 Wheel Loader for Underground Project
With update Engine Cummins Engine QSB4.5
| Competitive Advantage: | |
| 1. Original DEUTZ engine. Model can be chosed | • Underground Mining or Tunneling Project |
| 2. Very competitive pricing | • Hydropower Tunneling |
| 3. Competitive delivery time. 20-30 days | • Roadway/Railway Tunneling/Underground Project |
| 4. CE, ISO9001 Certified | • Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm) |
Main Technical Configuration:
| Brand: | ROXMECH |
| Rated Bucket Capacity: | 2 m3 |
| Length: | 6876 mm(Buket in haul position) |
| Width: | 1770 mm |
| Height: | 1950 mm |
| Wheelbase: | 2200mm |
| Track: | 1373mm |
| Departure Angle: | 15 degrees |
| Bucket Capacity (SAE, Heaped): | 2.0 m3 |
| Deadweight: | 11000kg |
|
Payload: |
4000kg |
| Front-axle laod, Unladen: | 5625kg |
| Rear-Axle load,Unladen: | 6875kg |
| Fully Loaded: | 14800kg |
| Bucket type: | Heavy Duty Rock Bucket |
| Maximum lift hieght: | 4000mm |
| Maximum Dumping Height: | 1800mm |
| Required dumping height clearnace: | 950mm |
| Dumping Angle: | 40 degrees |
| Engine Modle: | F6L912W/BSQ4.5 |
| Engine Type: | Air-Cooled Diesel Engine. Two stage combustion |
| Engine Max Power: | 63KW/2300rpm |
| Torque Converter: | C272-324 |
| Torque Converter Design: | Single stage industrial type with auxiliary drives for steering and dump/hoist hydraulic systems |
| Power shift transmission: | RT20326 |
| Power shift transmission Design: | Power shift transmission with 3 forward and 3 reverse gears each |
| Axle type: | CY-2J |
Our Service:
Our delivery can be 20 to 30 days;
We can offer training for our customers inside of our factory;
If the order is more then 5 units machines, we can send engineer to working side;
Offering some free spare parts together with the machines;
Can offer spare parts within short time;
Can change the machines based on customers' requirement.
Special service
Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.
Design service
Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.
Training service
When it comes to training service, we offer technical manual to our customers, and we will provide group customers with drive and maintenance courses.In addition, OEM is also available.
