CIR Series Low Air Pressure DTH Drill Bits CIR65 CIR70 CIR80 CIR90 CIR110 CIR150

CIR Series Low Air Pressure DTH Drill Bits CIR65 CIR70 CIR80 CIR90 CIR110 CIR150

CIR Series Low Air Pressure DTH Drill Bits CIR65 CIR70 CIR80 CIR90 CIR110 CIR150
CIR Series Low Air Pressure DTH Drill Bits CIR65 CIR70 CIR80 CIR90 CIR110 CIR150
CIR Series Low Air Pressure DTH Drill Bits CIR65 CIR70 CIR80 CIR90 CIR110 CIR150
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: DTH Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 20-25 days
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Highlight:

dth hammer bits

,

dth button bits





CIR Series Low Air Pressure DTH Drill Bits CIR65 CIR70 CIR80 CIR90 CIR110 CIR150



​We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.



CIR Series Low Air Pressure DTH Bit Specification:

CIR Series low air pressure DTH Bits
Type Diameter (mm) Number of Splines Weight (kg)
CIR65 68 6 2.50
CIR70 76 6 3.40
CIR80 83 6 3.45
CIR80X 83 6 3.50
CIR90 90 6 3.50
CIR90 100 6 4.50
CIR90 130 6 9.50
CIR110 110 6 6.40
CIR110 123 6 8.50
CIR110W 110 6 6.50
CIR6110W 123 6 8.80
CIR6150 155 6 12.0
CIR150A 155 6 12.5
CIR150A 165 6 14.0

Competitive Advantage

  • High quality, cost effective, reliable.
  • Premium Aircraft Alloy Steel
  • Quality Carbide
  • Exact Heat Treatments
  • State of the Art Design and Manufacturing

Pictures

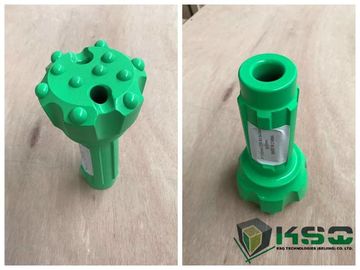

CIR Series Low Air Pressure DTH Drill Bits CIR65 CIR70 CIR80 CIR90 CIR110 CIR150 0



Applications

• Underground mining

• Down the hole rock drilling

KSQ more dth button bits:

Product DTH Button Bits
Low Air Pressure CIR80, CIR90
3’’ DHD3.5, M30,
4’’ DHD340, SD4,QL40, M40
5’’ DHD350, SD5,QL50, M50
6’’ DHD360, SD6,QL60, M60
8’’ DHD380, SD8,QL80, M80
Color Green, Gold, Black or based on customer requirements.
MOQ: No MOQ required for testing and trial order
