Mineral Slurry Water Dewatering Machine Ceramic Vacuum Filter In Mine Water Treatment

Mineral Slurry Water Dewatering Machine Ceramic Vacuum Filter In Mine Water Treatment

    • Mineral Slurry Water Dewatering Machine Ceramic Vacuum Filter In Mine Water Treatment
    • Mineral Slurry Water Dewatering Machine Ceramic Vacuum Filter In Mine Water Treatment
  • Mineral Slurry Water Dewatering Machine Ceramic Vacuum Filter In Mine Water Treatment

    Product Details:

    Place of Origin: Anhui,China
    Brand Name: MIROC
    Certification: ISO9001
    Model Number: Mineral Water Ceramic Filter

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Price: negotiation
    Packaging Details: Wooden Box or Seaworthy Package
    Delivery Time: 15-25days after receiving payment and order confirmation
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 50 Sets per month
    Contact Now
    Detailed Product Description
    Type: Mineral Water Ceramic Filter Filter Material: Micro-hole Ceramic Filter Plate
    Filter Area: 30m3 Filter Disk Number: 120pcs
    Disc Diameter: 1920mm Length*Width*Height: 5800x3170x2530mm

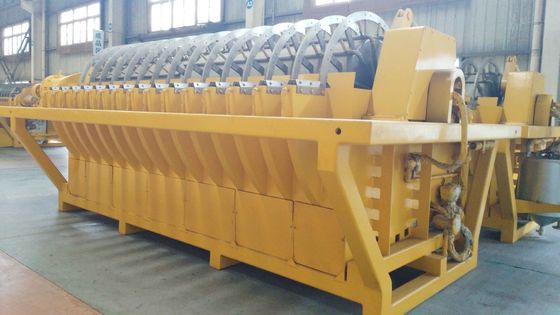

    Mineral Slurry Water Dewatering Machine Ceramic Vacuum Filter In Mine Water Treatment



    Ceramic Vacuum Filter has been widely used in copper, iron, gold, silver, tin, aluminum, lead, zinc, nickel, palladium, cobalt, molybdenum, aluminum, phosphorus, coal, sulfur, silicon, quartz, mica, rare earth concentrate, tailings dewatering, Zinc Oxide, chemical industry lead oxide, zinc sulfide, electro slag, leaching slag, slag cement dehydration and environmental pollution as well as waste acid treatment.
    The fineness of materials is from -200 to -450 and a variety of superfine materials.



    Technical Parameters of Filter Plate
    Name Parameters
    Water flux(pure water pressure 0.15MPa) ≥6400L /h.m2
    Pneumatic back flush test pressure ≥0.5Mpa
    Assembly precision Assembly ring plane and plate surface parallelism ±0.2mm
    Assembly ring  plane and the plate spacing 8±0.1mm
    Installation disk precision Assembly hole center and diagonal error ≤2mm
    Each plate spacing for disk   5±1mm
    The membrane surface abrasion total time                          (without scraper or other hard objects damage) ≥7000h
    Poriness ≥42%
    Bore diameter 2um-10um
    Breaking strength ≥30Mpa

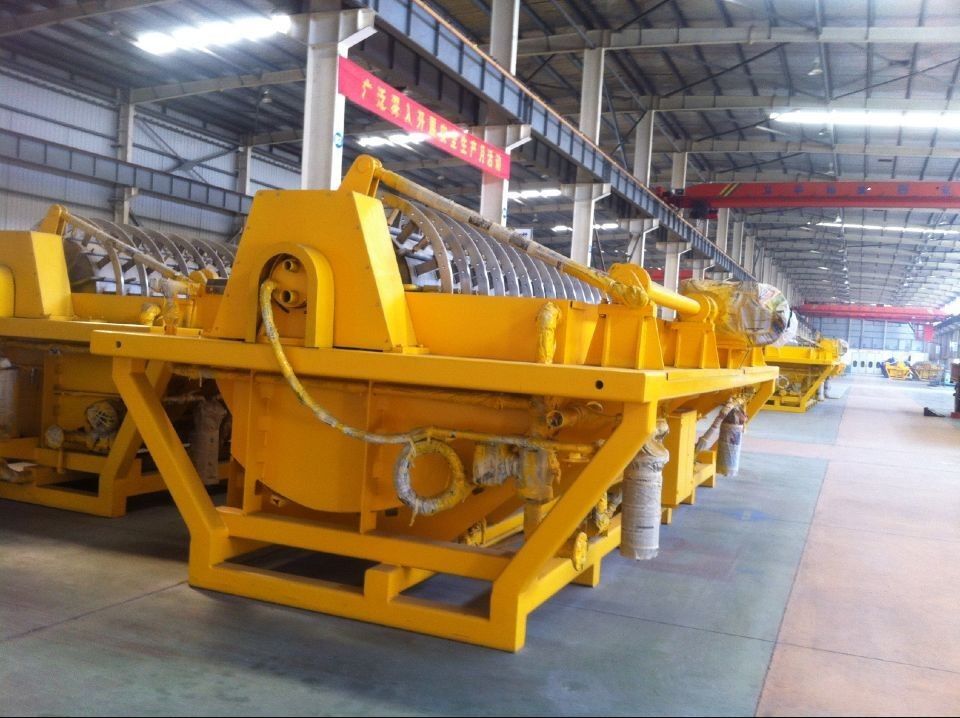

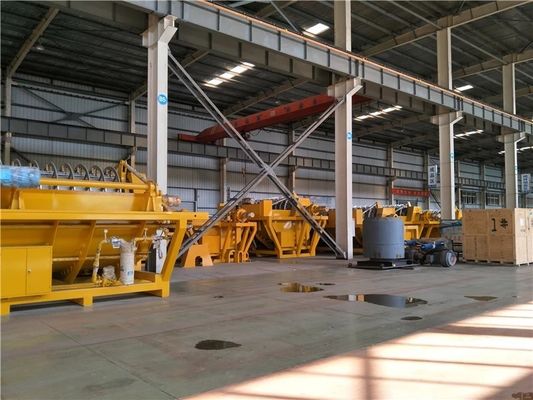

    Application at site for Ceramic Filter:



    Mineral Slurry Water Dewatering Machine Ceramic Vacuum Filter In Mine Water Treatment



    Characteristics of Ceramic Vacuum Filter :



    1. High vacuum degree(0.09-0.098MPa),filter cake has low water content.

    2. Solid content of liquid the maximum is 25ppm,repeated application is available,drainage is lessened.

    3. It can save 90% energy or above in contrast with traditional filter with low consumption and low cost.

    4. Filter cake cleaning process is added to clean proper materials.

    5. It combines PLC,computer and automatic valve control with high automatization and labor force has been lowered.

    6. Compact structure,covering less floor area,conventient installation and maintenance.

    7. Advanced drainage system fits for any working conditons.
