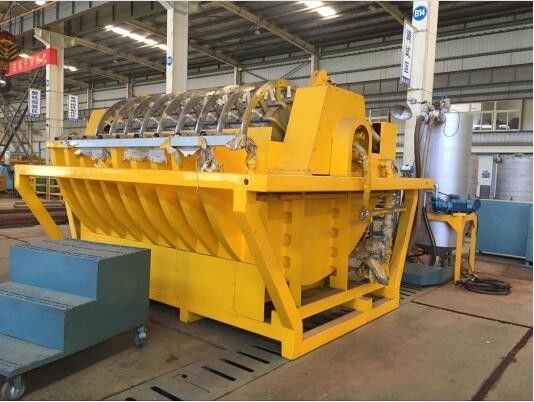

36m3 Ceramic Vacuum Disc Filter 8% Cake Moisture Used Ore Dewatering Mining

36m3 Ceramic Vacuum Disc Filter 8% Cake Moisture Used Ore Dewatering Mining

    • 36m3 Ceramic Vacuum Disc Filter 8% Cake Moisture Used Ore Dewatering Mining
    • 36m3 Ceramic Vacuum Disc Filter 8% Cake Moisture Used Ore Dewatering Mining
  • 36m3 Ceramic Vacuum Disc Filter 8% Cake Moisture Used Ore Dewatering Mining

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: ISO9001
    Model Number: Ceramic Vacuum Filter

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Price: negotiation
    Packaging Details: Wooden Box or Seaworthy Package
    Delivery Time: 15-25days after receiving payment and order confirmation
    Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, , D/P
    Supply Ability: 50 Sets per month
    Contact Now
    Detailed Product Description
    Product Name: Mining Wastewater Ceramic Filter Filter Material: Micro-hole Ceramic Filter Plate
    Filter Area: 36m3 Filter Disk Number: 108pcs
    Dis Diameter: 2182mm Length*Width*Height: 5110x3435x2820mm

    36m3 Ceramic Vacuum Disc Filter 8% Cake Moisture Used Ore Dewatering Mining



    Ceramic Vacuum Filter has been widely used in copper, iron, gold, silver, tin, aluminum, lead, zinc, nickel, palladium, cobalt, molybdenum, aluminum, phosphorus, coal, sulfur, silicon, quartz, mica, rare earth concentrate, tailings dewatering, Zinc Oxide, chemical industry lead oxide, zinc sulfide, electro slag, leaching slag, slag cement dehydration and environmental pollution as well as waste acid treatment.
    The fineness of materials is from -200 to -450 and a variety of superfine materials.



    Parameters and Specification:

    Technical Parameters of Filter Plate
    Name Parameters
    Water flux(pure water pressure 0.15MPa) ≥6400L /h.m2
    Pneumatic back flush test pressure ≥0.5Mpa
    Assembly precision Assembly ring plane and plate surface parallelism ±0.2mm
    Assembly ring plane and the plate spacing 8±0.1mm
    Installation disk precision Assembly hole center and diagonal error ≤2mm
    Each plate spacing for disk 5±1mm
    The membrane surface abrasion total time (without scraper or other hard objects damage) ≥7000h
    Poriness ≥42%
    Bore diameter 2um-10um
    Breaking strength ≥30Mpa

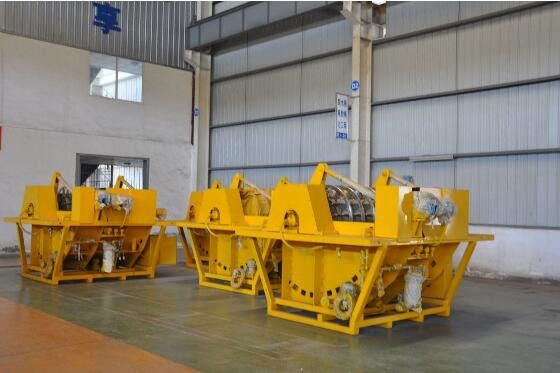

    Products picture:

    36m3 Ceramic Vacuum Disc Filter 8% Cake Moisture Used Ore Dewatering Mining



    Characteristics of Ceramic Vacuum Filter :

    1. High vacuum degree(0.09-0.098MPa), filter cake has low water content.

    2. Solid content of liquid the maximum is 25ppm, repeated application is available,drainage is lessened.

    3. It can save 90% energy or above in contrast with traditional filter with low consumption and low cost.

    4. Filter cake cleaning process is added to clean proper materials.

    5. It combines PLC, computer and automatic valve control with high automatization.

    6. Compact structure,covering less floor area,conventient installation and maintenance.

    7. Advanced drainage system fits for any working conditons.



    Application at site for Ceramic Filter:



    TT Series High Efficient Ceramic Vacuum Filter 24m3 For Separate Mine Slurry
