Dewatering Ceramic Vacuum Filter for Separating Liquids From Solids

Dewatering Ceramic Vacuum Filter for Separating Liquids From Solids

    • Dewatering Ceramic Vacuum Filter for Separating Liquids From Solids
    • Dewatering Ceramic Vacuum Filter for Separating Liquids From Solids
    • Dewatering Ceramic Vacuum Filter for Separating Liquids From Solids
    • Dewatering Ceramic Vacuum Filter for Separating Liquids From Solids
    • Dewatering Ceramic Vacuum Filter for Separating Liquids From Solids
    • Dewatering Ceramic Vacuum Filter for Separating Liquids From Solids
  • Dewatering Ceramic Vacuum Filter for Separating Liquids From Solids

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: ISO9001
    Model Number: Ceramic Filter

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: negotiation
    Packaging Details: Iron Box or Nude Package
    Delivery Time: 15-25days after receiving payment and order confirmation
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 50 Sets per month
    Contact Now
    Detailed Product Description
    Product Name: Vacuum Ceramic Filtration System Length*Width*Height: 5165x3445x2900mm
    Usage: Mining, Metallurgy, Chemical Industry, Environmental Protection And Other Industries Package: Steel Frame And Wood Carton

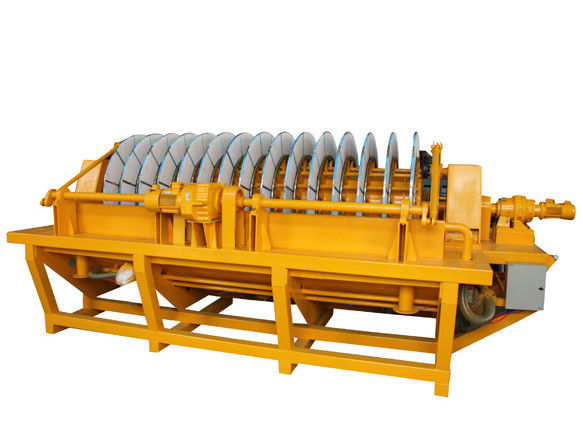

    Dewatering Ceramic Vacuum Filter for Separating Liquids From Solids



    The TT Series Vacuum Ceramic Filter System is extensively used in the mining industry to separate liquids from solids for dewatering purposes. The operation and construction principle is similar to a conventional disc filter except the filter medium is replaced by finely porous ceramic discs, providing resistance to almost all chemicals and having a long operational life. The TT Series is designed and manufactured based on specific requirements by clients.



    NO. Model The filter Number Volume of The installed Driving Power Appearance
    plate number of plate tank power (kw) size
        (m³) (Kw)   (mm)
    1 TT-1 1 12 0.21 3.5 2 1.6×1.4×1.5
    2 TT-4 2 24 1 7 3 2.4×2.5×2.5
    3 TT-6 2 24 1.2 7 6 2.4×2.9×2.5
    4 TT-9 3 36 1.7 9 7 2.7×2.9×2.5
    5 TT-12 4 48 2.2 11 7.5 3.0×2.9×2.5
    6 TT-15 5 60 2.7 11.5 8 3.1×3.0×2.5
    7 TT-21 7 84 4 13.5 9 4.6×3.0×2.6
    8 TT-24 8 96 4.5 16.5 10.5 4.9×3.0×2.6
    9 TT-27 9 108 5 17 11 5.2×3.0×2.6
    10 TT-30 10 120 5.5 17.5 11.5 5.5×3.0×2.6
    11 TT-36 12 144 7 23 16 6.6×3.0×2.6
    12 TT-45 15 180 8.5 15 19 7.5×3.0×2.6
    13 TT-60 20 180 12.5 33 22 7.5×3.3×3.0
    14 TT-80 17 240 16.5 40 24 9.0×3.3×3.0
    15 TT-100 20 204 18.5 53 35 8.8×3.6×3.3
    16 TT-120 25 240 20 60 40 9.7×3.6×6.6
    17 TT-150   300 24 75 47 11.2×3.6×3.3





    Dewatering Ceramic Vacuum Filter for Separating Liquids From Solids


    The disc filter is a continuous vacuum filtration device for extracting the slurry in the production of phosphoric acid to separate the phosphoric acid from the phosphogypsum. It can also be used in the industrial sectors such as metallurgy, light industry and national defense.
    It is driven by a motor through a V-belt, a circular worm gear reducer, and is driven by a pair of star wheels and a blunt pin wheel on the ring wheel to drive the ring carousel horizontally. A plurality of trapezoidal vacuum and U-shaped tube filter discs are mounted on the ring-shaped turntable, all made of high-grade acid-resistant stainless steel material, and connected with an acid-resistant rubber tube to the distribution head that rotates synchronously with the center-mounted turntable. The dispensing head is made of acid-resistant stainless steel. The casting is manufactured with a suction filter at the bottom that can be connected to the vacuum system. One cycle of each filter disc will complete the cycle of initial filtration, one wash, two washes (including acid absorption), reverse blowback slag discharge, filter cloth rinsing and suction dry reset. The flipping action of the filter disc is accomplished by a curved fork mounted on a V-shaped fork and roller mounted on the filter disc shaft.



    About KSQ - ROXMECH:

    ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
    equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
    Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
    Service Vehicles, Personnel Carriers and Vaccum Ceramic Filtration.


    ROXMECH® was developed through years of exchanges and hands-on work with mining
    operations in China and some parts of the world where mining is the lifeblood of the economy.
    In every product we build, our reputation and experience can be seen. That’s the reason
    to choose us if you are looking to improve your productivity and reduce costs.



    Dewatering Ceramic Vacuum Filter for Separating Liquids From Solids
