Tailings Dewatering Low noise TT -2 TT -4 Series vacuum ceramic filter For Mining Projects

Tailings Dewatering Low noise TT -2 TT -4 Series vacuum ceramic filter For Mining Projects

  • Tailings Dewatering Low noise TT -2 TT -4 Series vacuum ceramic filter For Mining Projects
  • Tailings Dewatering Low noise TT -2 TT -4 Series vacuum ceramic filter For Mining Projects
  • Tailings Dewatering Low noise TT -2 TT -4 Series vacuum ceramic filter For Mining Projects
Tailings Dewatering Low noise TT -2 TT -4 Series vacuum ceramic filter For Mining Projects
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO9001
Model Number: Ceramic Plate
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Iron Box or Nude Package
Delivery Time: 15-25days after receiving payment and order confirmation
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 Sets per month
Contact Now
Detailed Product Description
Product Name: Vacuum Ceramic Filtration System Specification: TT-2 TT-4
Capacity: 1-30tons/Hour Filter Area: 1-60m2
High Light:

ceramic disc filter

,

vacuum disc filter

TT-2 TT-4 Series Vacuum Ceramic Filter For Mining Projects

Separate liquids from solids for dewatering purposes



The TT Series Vacuum Ceramic Filter System is extensively used in the mining industry to separate liquids from solids for dewatering purposes. The operation and construction principle is similar to a conventional disc filter except the filter medium is replaced by finely porous ceramic discs, providing resistance to almost all chemicals and having a long operational life. The TT Series is designed and manufactured based on specific requirements by clients.



Vacuum Ceramic Spare Parts are available


Pictures:

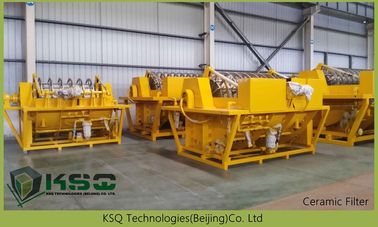

Ceramic Filter

Tailings Dewatering Low noise TT -2 TT -4 Series vacuum ceramic filter For Mining Projects 0



Ceramic Plate Specification

Model TT-2 TT-4
Specification(N m2 ) 2m2 2m2
Liquid discharging way Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage
Size L×W×H(mm) 2300×2480×2100 2300×2480×2100 2460×2480×2100 2460×2480×2100
Outer diameter of Plate(mm) 1510 1510 1510 1510
Filter Area(m2 ) 2 2 4 4
Quantity of plate(Circle) 1 1 2 2
Quantity of ceramic plate(pcs) 12 12 24 24
Total weight(t) 1.8 1.8 2 2
Max Overhaul weight(t) 0.5 0.5 0.55 0.55
Volume of tank(m3) 0.7 0.7 0.85 0.85
Installed power(KW) 6.35 7.9 7.4 8.95
Max working power(KW) 5.85 7.4 6.6 8.15
Power of Spindle speed reducer (KW) 0.75 0.75 1.5 1.5
Power of Stirring speed reducer(KW) 2.2 2.2 2.2 2.2
Power of Vacuum Pump(KW) 1.45×2 1.45 1.45×2 1.45
Powere of Circulation pump(KW)   3   3
Power of Controlled Volum pump(KW) 0.2 0.2 0.2 0.2
Power of Ultrasonic(KW) 0.3 0.3 0.6 0.6
98%Dosage of nitric acid(kg/d) 1.8 1.8 3.6 3.6
Clean water(m3/h) 0.36 0.36 0.72 0.72
Entrance pressure of clean water(Mpa) 0.35~0.5 0.35~0.5 0.35~0.5 0.35~0.5
Production water consumption(m3/d) 4.2 4.2 5.1 5.1
Entrance pressure of production water 0.5~0.7 0.5~0.7 0.5~0.7 0.5~0.7
Air volume for gas back flushing(m3/min) 0.67 0.67 0.67 0.67
Valve control gas consumption(m3/min) 0.36 0.36 0.36 0.36
Air intake pressure(Mpa) 0.7 0.7 0.7 0.7
Main shaft speed(r/min) 0.5~1.5 0.5~1.5 0.5~1.5 0.5~1.5
Speed of agitator(r/min) 12~20 12~20 12~20 12~20


Features:
1. Filtering area from 6 cubic meters up to 120 cubic meters
2. High vacuum degree, low moisture on formed cake
3. High filtration precision, solid filtration < 50ppm
4. Low energy consumption
5. Low running costs
6. Optional filter cake cleaning system
7. High degree of automation
8. Compact structure to minimize required floor space and convenient maintenance
9. Advanced drainage system ensures application in any running condition
Automation on special functions available upon request.



Characteristics of Ceramic Vacuum Filter :

model filters plate(circle) plate qual.(block) tank volume(m3) installed power operating power size(m)(L*W*H)
KSQ-1 1 12 0.4 7.6 6.6 2.2*1.95*1.63
KSQ-4 2 24 0.79 9 7.32 2.45*2.25*1.83
KSQ-6 3 36 0.94 10.5 7.98 2.7*2.25*1.83
KSQ-8 4 48 1.28 11.5 8.14 3.04*2.25*1.83
KSQ-12 6 72 1.79 13 7.96 3.6*2.25*1.83
KSQ-24 8 96 3.96 23 16.28 4.45*2.85*2.25
KSQ-30 10 120 4.6 25.15 17.95 5.1*2.85*2.24
KSQ-45 10 120 5.9 40 30.4 5.7*3.2*2.5
KSQ-60 14 168 8.1 43.81 30.37 6.82*3.2*2.5

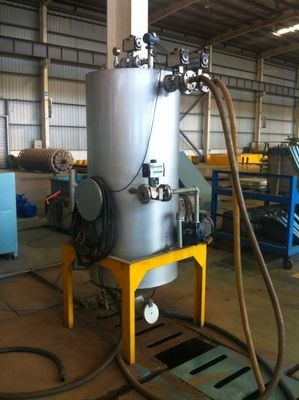

Application at site for Ceramic Filter:

Tailings Dewatering Low noise TT -2 TT -4 Series vacuum ceramic filter For Mining Projects 1



About KSQ - ROXMECH:

ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, Personnel Carriers and Vaccum Ceramic Filtration.


ROXMECH® was developed through years of exchanges and hands-on work with mining
operations in China and some parts of the world where mining is the lifeblood of the economy.
In every product we build, our reputation and experience can be seen. That’s the reason
to choose us if you are looking to improve your productivity and reduce costs.
