|Place of Origin:||China|
|Model Number:||Ceramic Plate|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Iron Box or Nude Package|
|Delivery Time:||15-25days after receiving payment and order confirmation|
|Payment Terms:||T/T, L/C, D/A, D/P, Western Union, MoneyGram|
|Supply Ability:||50 Sets per month|
|Product Name:||Vacuum Ceramic Filtration System||Specification:||TT-6 TT-8|
|Energy Saving:||Energy Saving||Application:||Mining|

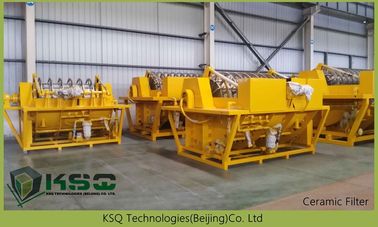

TT-6 TT-8 Series Vacuum Ceramic Filter For Mining Projects
Separate liquids from solids for dewatering purposes

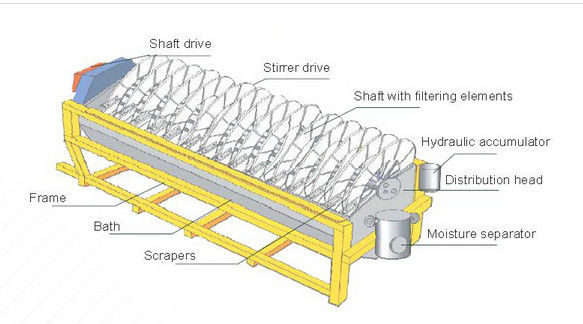

The TT Series Vacuum Ceramic Filter System is extensively used in the mining industry to separate liquids from solids for dewatering purposes. The operation and construction principle is similar to a conventional disc filter except the filter medium is replaced by finely porous ceramic discs, providing resistance to almost all chemicals and having a long operational life. The TT Series is designed and manufactured based on specific requirements by clients.
Vacuum Ceramic Spare Parts are available
Ceramic Plate Specification
|Specification(N m2 )||2m2||2m2|
|Liquid discharging way||Automatic liquid discharging||Filter pump drainage||Automatic liquid discharging||Filter pump drainage|
|Outer diameter of Plate(mm)||1510||1510||1510||1510|
|Quantity of plate(Circle)||3||3||4||4|
|Quantity of ceramic plate(pcs)||36||36||48||48|
|Max Overhaul weight(t)||0.65||0.65||0.75||0.75|
|Volume of tank(m3)||1.1||1.1||1.3||1.3|
|Max working power(KW)||6.6||8.15||7.4||8.95|
|Power of Spindle speed reducer (KW)||1.5||1.5||1.5||1.5|
|Power of Stirring speed reducer(KW)||2.2||2.2||3||3|
|Power of Vacuum Pump(KW)||1.45×2||1.45||1.45×2||1.45|
|Powere of Circulation pump(KW)||3||3|
|Power of Controlled Volum pump(KW)||0.2||0.2||0.2||0.2|
|Power of Ultrasonic(KW)||0.9||0.9||1.2||1.2|
|98％Dosage of nitric acid(kg/d)||5.4||5.4||7.2||7.2|
|Entrance pressure of clean water(Mpa)||0.35～0.5||0.35～0.5||0.35～0.5||0.35～0.5|
|Production water consumption(m3/d)||6.6||6.6||7.8||7.8|
|Entrance pressure of production water||0.5～0.7||0.5～0.7||0.5～0.7||0.5～0.7|
|Air volume for gas back flushing(m3/min)||0.67||0.67||0.67||0.67|
|Valve control gas consumption(m3/min)||0.36||0.36||0.36||0.36|
|Air intake pressure(Mpa)||0.7||0.7||0.7||0.7|
|Main shaft speed(r/min)||0.5～1.5||0.5～1.5||0.5～1.5||0.5～1.5|
|Speed of agitator(r/min)||12～20||12～20||12～20||12～20|
1. Filtering area from 6 cubic meters up to 120 cubic meters
2. High vacuum degree, low moisture on formed cake
3. High filtration precision, solid filtration < 50ppm
4. Low energy consumption
5. Low running costs
6. Optional filter cake cleaning system
7. High degree of automation
8. Compact structure to minimize required floor space and convenient maintenance
9. Advanced drainage system ensures application in any running condition
Automation on special functions available upon request.
Characteristics of Ceramic Vacuum Filter :
1. High vacuum degree(0.09-0.098MPa), filter cake has low water content.
2. Solid content of liquid the maximum is 25ppm, repeated application is available,drainage is lessened.
3. It can save 90% energy or above in contrast with traditional filter with low consumption and low cost.
4. Filter cake cleaning process is added to clean proper materials.
5. It combines PLC, computer and automatic valve control with high automatization.
6. Compact structure,covering less floor area,conventient installation and maintenance.
7. Advanced drainage system fits for any working conditons.
Application at site for Ceramic Filter:
