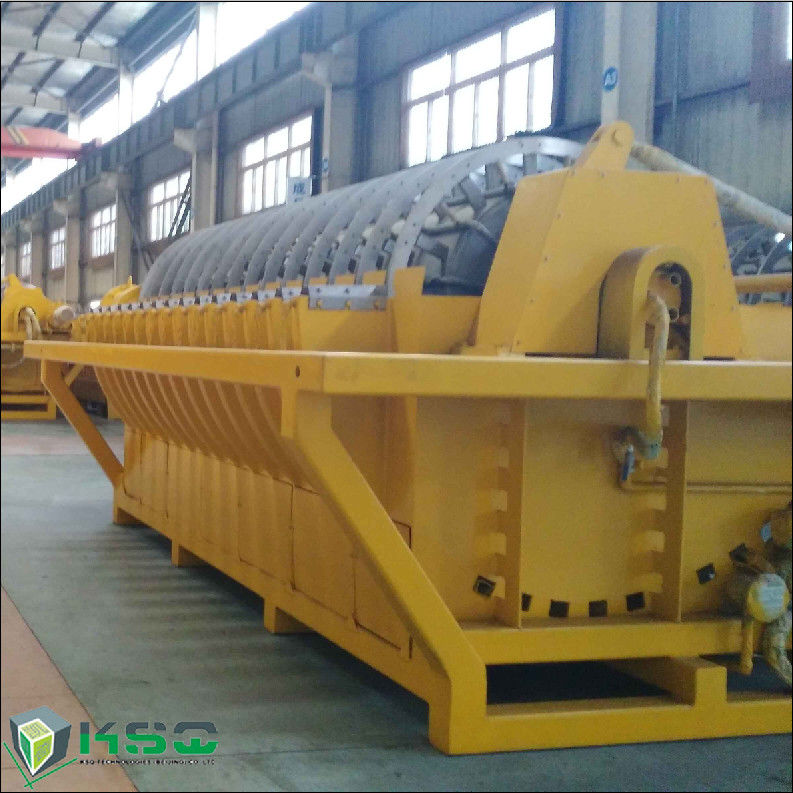

Filtration of Tails and Slimes Vacuum ceramic filter disc 21m3 Filter Area

Filtration of Tails and Slimes Vacuum ceramic filter disc 21m3 Filter Area

  • Filtration of Tails and Slimes Vacuum ceramic filter disc 21m3 Filter Area
  • Filtration of Tails and Slimes Vacuum ceramic filter disc 21m3 Filter Area
  • Filtration of Tails and Slimes Vacuum ceramic filter disc 21m3 Filter Area
Filtration of Tails and Slimes Vacuum ceramic filter disc 21m3 Filter Area
Product Details:
Place of Origin: Anhui,China
Brand Name: MIROC
Certification: ISO9001
Model Number: Ceramic Disc Filters
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: negotiation
Packaging Details: Wooden Box or Seaworthy Package
Delivery Time: 15-25days after receiving payment and order confirmation
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 Sets per month
Contact Now
Detailed Product Description
Type: Ceramic Disc Filters Usage: Mineral Concentrates
Filter Area: 21m3 Filter Disk Number: 84pcs
Dis Diameter: 1920mm Length*Width*Height: 4900x3100x2490mm
High Light:

ceramic disc filter

,

vacuum disc filter



Filtration of Tails and Slimes Vacuum ceramic filter disc 21m3 Filter Area



Ceramic Vacuum Filter has been widely used in copper, iron, gold, silver, tin, aluminum, lead, zinc, nickel, palladium, cobalt, molybdenum, aluminum, phosphorus, coal, sulfur, silicon, quartz, mica, rare earth concentrate, tailings dewatering, Zinc Oxide, chemical industry lead oxide, zinc sulfide, electro slag, leaching slag, slag cement dehydration and environmental pollution as well as waste acid treatment.
The fineness of materials is from -200 to -450 and a variety of superfine materials.



Technical Parameters of Filter Plate
Name Parameters
Water flux(pure water pressure 0.15MPa) ≥6400L /h.m2
Pneumatic back flush test pressure ≥0.5Mpa
Assembly precision Assembly ring plane and plate surface parallelism ±0.2mm
Assembly ring  plane and the plate spacing 8±0.1mm
Installation disk precision Assembly hole center and diagonal error ≤2mm
Each plate spacing for disk   5±1mm
The membrane surface abrasion total time                          (without scraper or other hard objects damage) ≥7000h
Poriness ≥42%
Bore diameter 2um-10um
Breaking strength ≥30Mpa

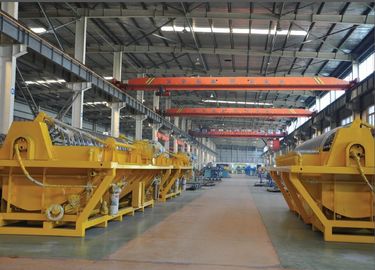

Application at site for Ceramic Filter:



Filtration of Tails and Slimes Vacuum ceramic filter disc 21m3 Filter Area 0



Characteristics of Ceramic Vacuum Filter :



1. High vacuum degree(0.09-0.098MPa),filter cake has low water content.

2. Solid content of liquid the maximum is 25ppm,repeated application is available,drainage is lessened.

3. It can save 90% energy or above in contrast with traditional filter with low consumption and low cost.

4. Filter cake cleaning process is added to clean proper materials.

5. It combines PLC,computer and automatic valve control with high automatization and labor force has been lowered.

6. Compact structure,covering less floor area,conventient installation and maintenance.

7. Advanced drainage system fits for any working conditons.



Company Information



KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries.

KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.

Our portfolio includes:

Consumables used in the mining and construction industries
Equipment used in the mining and construction industries
Spare parts used for the equipment we sell for the mining and construction industries
Green technologies, such as products that reduce electric consumption or use alternate sources of energy (solar, wind, etc.)

Filtration of Tails and Slimes Vacuum ceramic filter disc 21m3 Filter Area 1Filtration of Tails and Slimes Vacuum ceramic filter disc 21m3 Filter Area 2
