| Place of Origin: | China |
| Brand Name: | ROXMECH |
| Certification: | API/CE Certificate |
| Model Number: | 3 CBM Load-Haul-Dump Machine |
| Minimum Order Quantity: | 1 Set Load-Haul-Dump Machine |
|---|---|
| Price: | negotiation |
| Packaging Details: | Nude Package or Based on Customer's Requirements |
| Delivery Time: | 1-3 Months |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 3pcs per month |
| Material: | Tungsten Carbide And High Quality Carbon Steel | Use: | Tunneling, Mining,Quarrying, Construction |
|---|---|---|---|
| Processing Type: | CNC Milling And Proprietary Heat Treatment Process | Color: | Yellow Or Orange |
| Type: | RL-0.6 Load Haul Dump Truck | ||
| High Light: | underground lhd machines,lhd load haul dump |
||

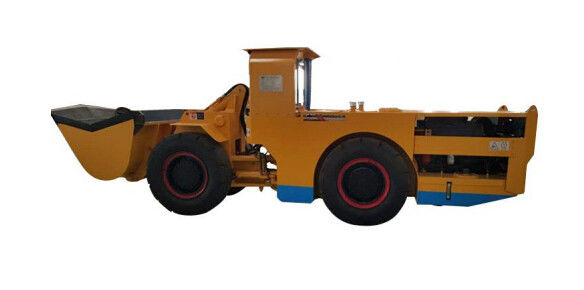

RL-0.6 Load Haul Dump Truck Used For Railway Tunneling Mining Underground Equipment
Describtion
The RL-0.6 Load-Haul-Dump Machine is ideal for small size rock excavation operations. The RL-0.6 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.
specification
| RL- 0.6 Load-Haul-Dump Machine Main Dimensions | |
| Engine | Deutz Model: BF4L2011, Rate Power: 47.5KW |
| Rated Bucket Capacity | 0.6m³ |
| Brake System | Using Spring and Hydraulic break system. |
| Rated Load Capacity | 1.2t |
| Maximum Relieving Force | 35kN |
| Maximum Traction | 42kN |
| Driving Speed | 0-9km/h |
| Maximum Climbing Capacity | 20° |
| Maximum Discharge Height | 690mm |
| Minimum Discharge Distance | 800 mm |
| Minimum Turning Radius |
3350mm (Outboard of bucket) 1830mm (insideof back wheel) |
| Maximum Steering Angle | ±38° |
| Departure Angle | 16° |
| Weight of the Whole Machine | 4.5t |
| Size |
Length (Bucket in haul position) 4850mm Width 1160mm Height of the Cab 1850mm |
Applications
• Underground Mining
• Hydropower Tunneling
• Roadway/Railway Tunneling
• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)
ROXMECH® was developed through years of exchanges and hands-on work with mining
operations in China and some parts of the world where mining is the lifeblood of the econ-
omy. In every product we build, our reputation and experience can be seen. That’s the rea-
son to choose us if you are looking to improve your productivity and reduce costs.
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
