Type: | Chisel Bit Integral Drill Steel | Shank: | Shank 19x108mm And Shank 22x108mm |
---|---|---|---|
Bit Diameter: | 34mm | Length: | 800mm |
High Light: | tungsten carbide rod,stone drilling tools |

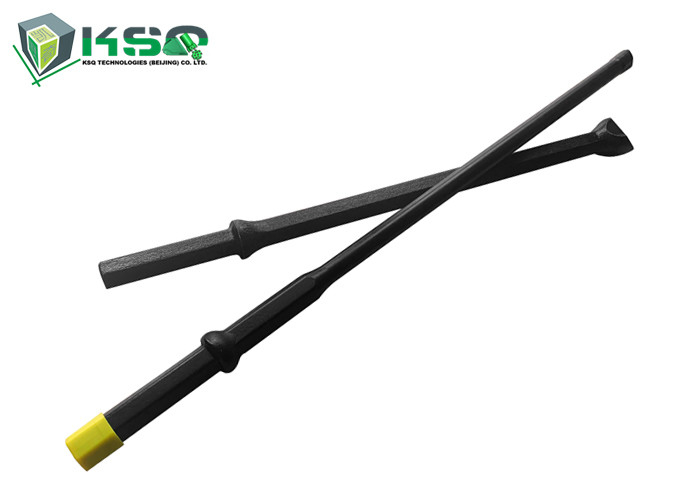

Mining Integral Rock Drill Steel Rod , Quarrying Plug Hole Drill Rod
The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Specifications:
(1)Steel grade: 95CrMo equivalent to SANDBAR 20 or C253, 55SiMnMo
(2)Shank size: hex19mm hex.22mm, hex.25mm including Plug Hole Rod
(3)Head Diameter: 28mm-46mm
(4)Length: 0.4m-6.4m
Product Name: |
hard rock Mining Integral drill steel,Integral drill rod |
|||
Types |
Tapered drill rods, Integral drill rods, Plug hole rods |
|||
Application:: |
Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling |
|||
Material: |
High quality carbide and high quality steel |
|||
MOQ: |
No requirement for testing and trial order |
Applications of integral drill steel
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling,quarrying
Competitive Advantage
• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
• High grade tungsten carbide inserts
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
