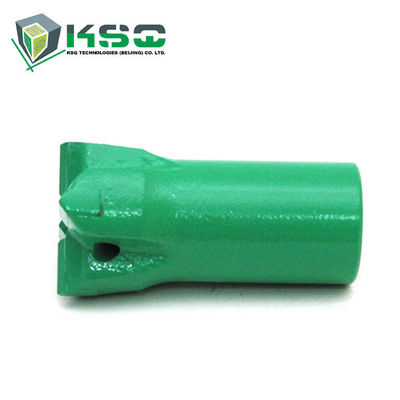

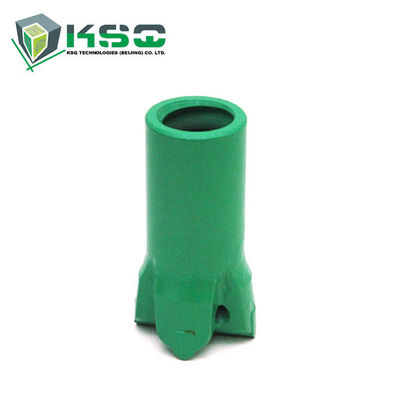

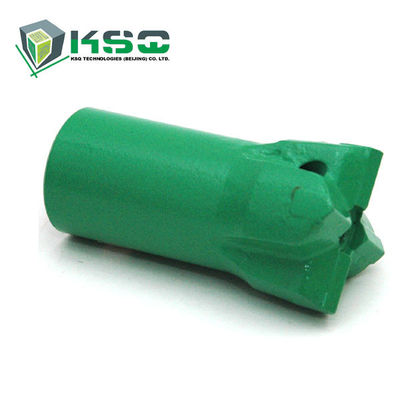

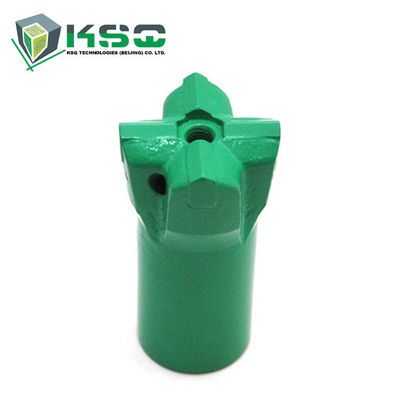

R32 - 43mm Threaded Cross Bits Rock Drilling Bit For Underground Coal Mining

Large Image : R32 - 43mm Threaded Cross Bits Rock Drilling Bit For Underground Coal Mining

Product Details:

Place of Origin:	China
Brand Name:	MIROC
Model Number:	R3225 Threaded Cross Bit

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Carton Box and Wooden Box
Delivery Time:	25 Days
Payment Terms:	D/P, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability:	30000Pieces/Month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Color:	Blue,Green Or Based On Demand
Applications:	Mining And Quarring	Design:	Precise Design Suit Particular Needs
Qaulity:	Stable And Reliable	Market:	Domestic And Overseas
Name:	R32 Cross Drill Bit
Highlight:	short drill bits , high speed drill bits

R32 - 43mm Threaded Cross Bits Rock Drilling Bit For Underground Coal Mining

Product Specification

Product	R32 Cross type bit
Diameter	43mm
Alloy	16x10mm
Flushing hole No.	Front 1, Side 4
Weight	0.7KG
Color	Glod (customized according to customer needs)

Miroc R32 Cross type bit with steel inserts using thread system. It has a slow penetration rate but it produces a very straight drill hole.
• Steel inserts
• Widely used in dimensional stone industry, drifting and tunneling

Cross Type Bit parameter

R32

Cross Tye Bits R25(1") R28(1 1/8")	Diameter		Button(mm)	Thread	Part No.
	mm	inch	Weight*Height	Thread	Part No.
	45	1 3/4"	16*10	R32
	48	1 7/8"	16*10	R32
	51	2"	16*10	R32
	57	2 1/4"	16*10	R32
	64	2 1/2"	16*10	R32
	76	3"	16*10	R32

H25

Cross Tye Bits H25	Diameter		Button(mm)	Flushing Holes		Part No.
	mm	inch	LengthxWidthxHeight	Side	Front	Part No.
	35	1 3/8"	13812	4	1
	38	1 1/2"	14812	4	1
	41	1 21/32"	15812	4	1
	45	1 49/64"	17812	4	1
	48	1 57/64"	17814	4	1
	51	2"	191016	4	1
	57	2 1/4"	221016	4	1
	64	1 33/64"	241016	4	1
	76	3"	291220	4	1

R25/R28

Cross Tye Bits R25(1") R28(1 1/8")	Diameter		Button(mm)	Thread	Part No.
	mm	inch	Weight*Height	Thread	Part No.
	35	1 3/8"	14*8	R25
	38	1 1/2"	14*8	R25
	41	1 5/8"	14*8	R25
	43	1 11/16"	14*8	R25
	38	1 1/2"	14*8	R28
	43	1 11/16"	14*8	R28
	45	1 3/4"	14*8	R28

The Feature of R32 Cross Bit

1.The R32 threaded cross bit & Button Bit connect with R32 threaded drill rod perfectly for drilling holes
2.Stale and mature welding technology ensure high quality of bits
3.work reliable and very cost-effective

4.High grade tungsten carbide inserts
5 Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

MIROC® Rock Drilling and Ground Support Tools include:

Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers

R32 - 43mm Threaded Cross Bits Rock Drilling Bit For Underground Coal Mining 0

R32 - 43mm Threaded Cross Bits Rock Drilling Bit For Underground Coal Mining 11

R32 - 43mm Threaded Cross Bits Rock Drilling Bit For Underground Coal Mining 13

R32 - 43mm Threaded Cross Bits Rock Drilling Bit For Underground Coal Mining 14

R32 - 43mm Threaded Cross Bits Rock Drilling Bit For Underground Coal Mining 15
