Place of Origin: | China |
Brand Name: | Mirco |
Model Number: | Cross bits |
Minimum Order Quantity: | negociated one |
---|---|
Price: | negociated one |
Packaging Details: | wooden box or plastic box |
Delivery Time: | 10-15 days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 10000 Piece/Pieces per Month |
Product Name: | Tapered Cross Bit | Type: | Drill Bit |
---|---|---|---|
Machine Type: | Drilling Tool, Drilling Equipment | Material: | High Manganese Steel |
Processing Type: | Forging | Use: | Mining Drilling |
Diameter: | 35-57mm | Taper: | 7/11/12 Degrees |
High Light: | Tapered Drill Bit,Quarrying Cross Bits |

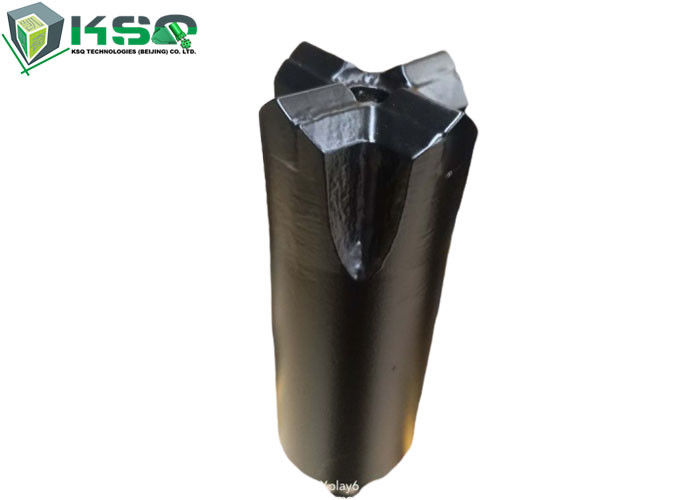

Tapered Drill Bit Long Skirt Corss Bit For Mining Quarrying
The taper cross bits can be used under any rock drilling condition because of it's comprehensive adaptability.
Compared with taper chisel bits, taper cross bits have a better drilling performance because carbide tips on cross bits doubled, which means carbides shape are cross type on drill bits. Taper cross bit is mainly used for hard or very hard rock formation.
Applications
• Underground mining
• Tunneling
• Quarry
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

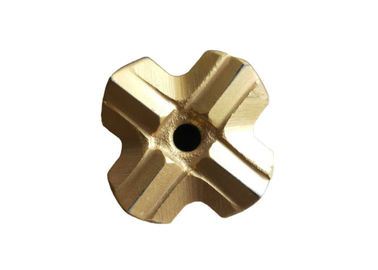

Tapered Cross Bits:
1) Tapered connection: 7,11,12
2) Chisel bit diameter: 30-60mm
3) Technology:hot-pressing or welding
4) Bit Body: Short skirt and Long skirt
5) Tapered drill rod: H22/H25*108mm
Length (mm) | Chisel Size (H x W) mm | Weight (Kg) | |||
1 | 30 | 12x12x8 | 0.29 | ||
2 | 32 | 12x12x8 | 0.31 | ||
3 | 33 | 12x12x8 | 0.33 | ||
4 | 34 | 12x12x8 | 0.34 | ||
5 | 35 | 12x12x8 | 0.36 | ||
6 | 36 | 13x12x8 | 0.37 | ||
7 | 38 | 14x12x8 | 0.43 | ||
8 | 40 | 15x12x8 | 0.47 | ||
9 | 41 | 15x12x8 | 0.49 | ||
10 | 42 | 15x12x8 | 0.51 | ||
11 | 43 | 15x12x8 | 0.53 | ||
12 | 45 | 17x14x8 | 0.58 | ||
13 | 48 | 17x14x8 | 0.67 | ||
14 | 50 | 19x14x8 | 0.72 | ||
15 | 55 | 20x16x10 | 0.92 | ||
16 | 60 | 20x16x10 | 1.19 |
NOTES:
To ensure the normal service life, the taper drill bits need to be matched well with taper drill rods, the taper degree must be the same between taper drill bits and taper dill rods; the penetration depth of taper drill rods which into the taper hole of taper dill bits should be over 25mm, and the head of the taper drill rods should not touch the bottom of the taper of taper drill bits, otherwise the taper drill bits would be lost easily during operation.
Package
About us
MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.
KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.
MIROC® Rock Drilling and Ground Support Tools include:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
