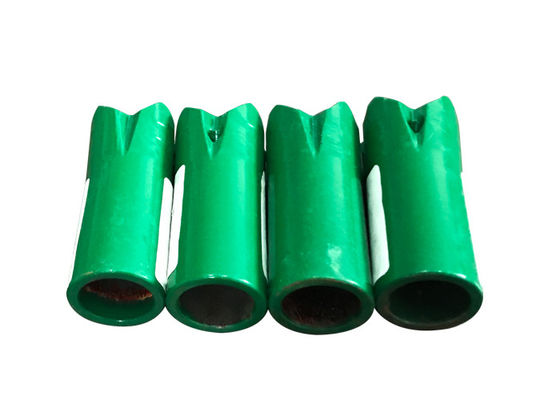

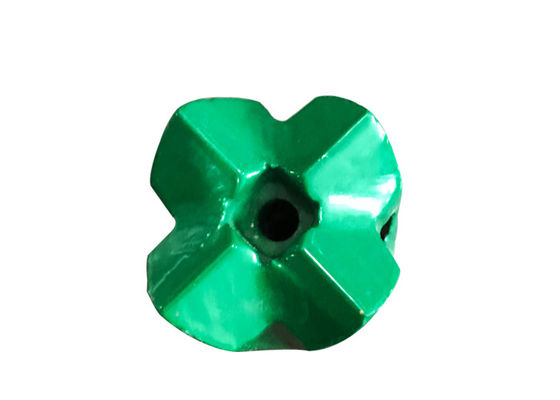

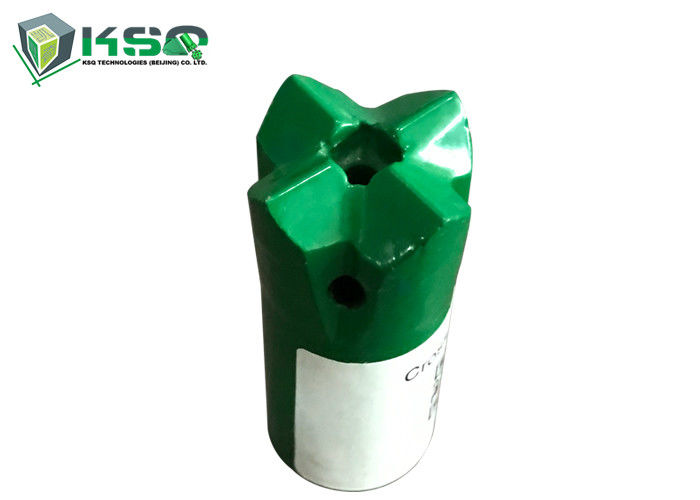

32mm Carbide Tapered Cross Drill Bit For Small Hole Rock Drilling

32mm Carbide Tapered Cross Drill Bit For Small Hole Rock Drilling

  • 32mm Carbide Tapered Cross Drill Bit For Small Hole Rock Drilling
  • 32mm Carbide Tapered Cross Drill Bit For Small Hole Rock Drilling
  • 32mm Carbide Tapered Cross Drill Bit For Small Hole Rock Drilling
32mm Carbide Tapered Cross Drill Bit For Small Hole Rock Drilling
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: Tapered Cross Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standrad export packaging or customised
Delivery Time: 15-20 days
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Marerial: Carbide Usage: Small Hole Drilling
Tapered Angle: 7°, 11°, 12° Bit Dia.: 26mm-78mm
Chisel Bit Size: 12*12*8, 13*12*8, Etc Or As Requirement Connection: Hex 19, 22, 25
Color: Green, Yellow, Black Or Customized Packaging: Carton, Wooden Box, Plastic Box
High Light:

32mm cross drill bit

,

carbide cross drill bit

,

tapered cross drill bit

32mm Carbide Tapered Cross Drill Bit For Small Hole Rock Drillings



Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered cross type bits if the goal is to minimize hole deviation in small hole range drilling. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.


• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

32mm Carbide Tapered Cross Drill Bit For Small Hole Rock Drilling 0



specification

Part Number

Product Code

and Brief

Description

Bit

Diameter

(mm)

Bit

Diameter

(inch)

Tip Size

(W x H,

mm)

Front

Flushing

Holes

Side

Flushing

Holes

Weight

(kg)

4148300141

CR30-7D-22, 7°

Taper Cross Type Bit

30 1 1/6 12 x 12 x 8 1 2 0.29
4148300142

CR32-7D-22, 7°

Taper Cross Type Bit

32 1 1/4 12 x 12 x 8 1 2 0.31
4148300143

CR33-7D-22, 7°

Taper Cross Type Bit

33 1 2/7 12 x 12 x 8 1 2 0.33
4148300144

CR34-7D-22, 7°

Taper Cross Type Bit

34 1 1/3 12 x 12 x 8 1 2 0.34
4148300145

CR35-7D-22, 7°

Taper Cross Type Bit

35 1 3/8 12 x 12 x 8 1 2 0.36
4148300146

CR36-7D-22, 7°

Taper Cross Type Bit

36 1 3/7 13 x 12 x 8 1 2 0.37
4148300147

CR38-7D-23, 7°

Taper Cross Type Bit

38 1 1/2 14 x 12 x 8 1 2 0.43
4148300148

CR40-7D-23, 7°

Taper Cross Type Bit

40 1 4/7 15 x 12 x 8 1 2 0.47
4148300149

CR41-7D-23, 7°

Taper Cross Type Bit

41 1 3/5 15 x 12 x 8 1 2 0.49
4148300150

CR42-7D-23, 7°

Taper Cross Type Bit

42 1 2/3 15 x 12 x 8 1 2 0.51
4148300151

CR43-7D-23, 7°

Taper Cross Type Bit

43 1 2/3 15 x 12 x 8 1 2 0.53
4148300152

CR45-7D-25, 7°

Taper Cross Type Bit

45 1 7/9 17 x 14 x 8 1 2 0.58
4148300153

CR48-7D-25, 7°

Taper Cross Type Bit

48 1 8/9 17 x 14 x 8 1 2 0.67
4148300154

CR50-7D-25, 7°

Taper Cross Type Bit

50 2 19 x 14 x 8 1 2 0.72
4148300155

CR55-7D-25, 7°

Taper Cross Type Bit

55 2 1/6 20 x 16 x 10 1 2 0.92
4148300156

CR60-7D-25, 7°

Taper Cross Type Bit

60 2 1/3 20 x 16 x 10 1 2



1.19




32mm Carbide Tapered Cross Drill Bit For Small Hole Rock Drilling 1
