Name: Stone Cross Bits
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: 4148300397-4148300403
Price: 12.00 USD
Availability: InStock

Home Products Cross Bits

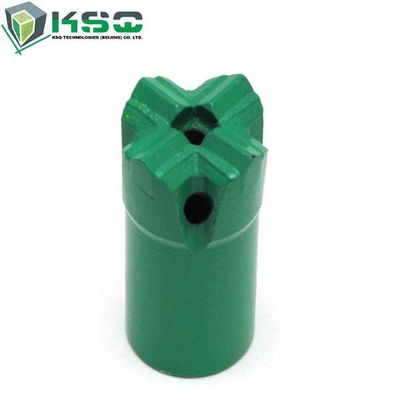

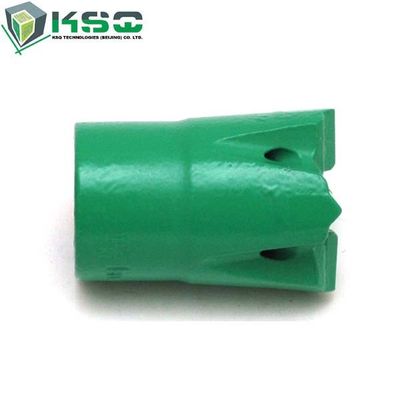

Stone Cross Bits

Product Details:

Place of Origin:	China
Brand Name:	MIROC
Model Number:	4148300397-4148300403

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	negotiation
Packaging Details:	Carton Box or Wooden Box
Delivery Time:	25 days
Payment Terms:	T/T or L/C
Supply Ability:	20000 pieces per month

Contact Now

Detailed Product Description

Highlight:

short drill bits

high speed drill bits

Description

Cross type bit with steel inserts using H25 thread system. It has a slow penetration rate but it produces a very straight drill hole.

• Steel inserts
• Widely used in dimensional stone industry, drifting and tunneling

Color: Green,Blue or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: R25 Cross Type Bit

Applications

• Dimensional Stone Industry
• Underground Mining
• Tunneling

Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

specification
<

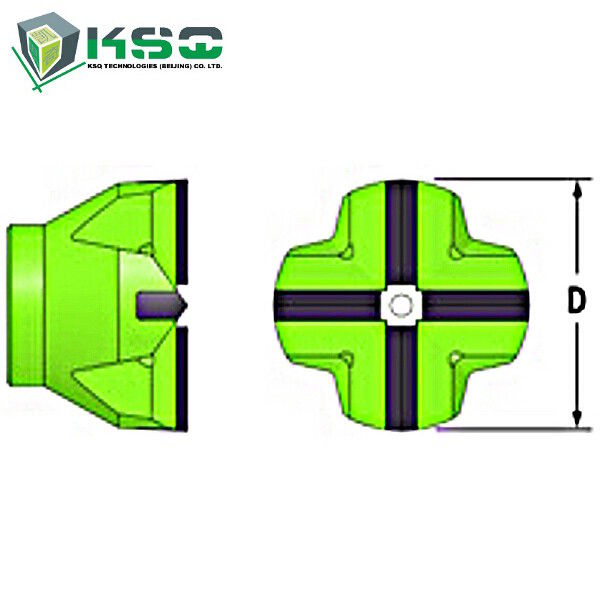

Part Number	Product Code and Brief Description	Bit Diameter (mm)	Bit Diameter (inch)	Tip Size (W x H, mm)	Front Flushing drill holes	Side Flushing drill holes	Weight (kg)
4148300397	CR-33-R25, R25 Cross Type Bit	33	1 2/7	14x8	1	2	0.4
4148300398	CR-35-R25, R25 Cross Type Bit	35	1 3/8	14x8	1	2	0.5
4148300399	CR-38-R25, R25 Cross Type Bit	38	1 1/2	14x8	1	4	0.6
4148300400	CR-41-R25, R25 Cross Type Bit	41	1 3/5	14x8	1	4	0.7
4148300401	CR-43-R25, R25 Cross Type Bit	43	1 2/3	14x8	1	4	0.7
4148300402	CR-45-R25, R25 Cross Type Bit	45	1 7/9	14x8	1	2	0.8
4148300403	CR-51-R25, R25 Cross Type Bit	51	2	14x8	1	4	1.1
