Mining Integral Rock Drill Steel Rod , Quarrying Plug Hole Drill Rod

Mining Integral Rock Drill Steel Rod , Quarrying Plug Hole Drill Rod

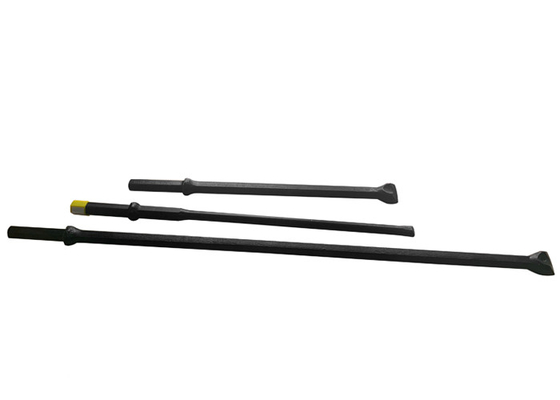

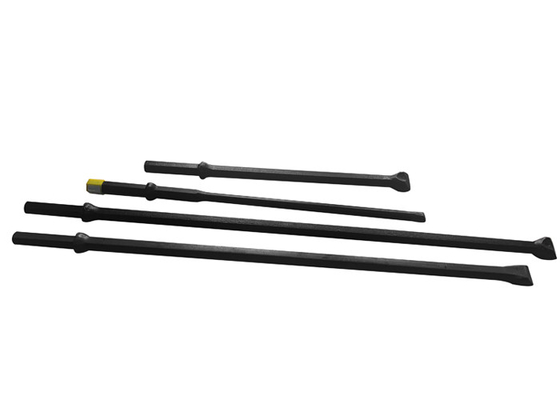

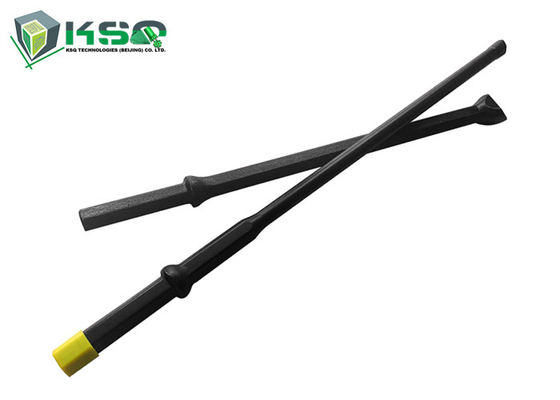

The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.

• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry

Color: Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Specifications:
(1)Steel grade: 95CrMo equivalent to SANDBAR 20 or C253, 55SiMnMo
(2)Shank size: hex19mm hex.22mm, hex.25mm including Plug Hole Rod
(3)Head Diameter: 28mm-46mm
(4)Length: 0.4m-6.4m

Applications of  integral drill steel

•  Dimensional Stone Quarrying Industry

•  Underground Mining
• Tunneling,quarrying

Competitive Advantage

•  High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
•  High grade tungsten carbide inserts

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

• Hazardous environment
• Acts, regulations, and other government guidelines that has to be followed
• Significant differences in the way people work, mostly due to physical constraints
• Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
