| Place of Origin: | Shangdong, China |
| Brand Name: | MIROC |
| Model Number: | Cross Bit |
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 10-20days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30000pcs per month |
| Product: | Cross Bit | Type: | Taper 7 , 11 , 12 Degree |
|---|---|---|---|
| Diameter: | 29mm - 60mm | Material: | Tungsten Carbide |
| High Light: | metal drill bit,high speed drill bits |
||
29mm - 60mm Diameter High Speed Mining Bits Cross Taper 7 11 12 Degree
Description
Cross type bit with steel inserts using thread system. It has a slow penetration rate but it produces a very straight drill hole.
|
Product Name: |
Cross Bit |
|
Material: |
Alloy steel bar and tungsten carbide bit |
|
MOQ: |
No MOQ required for testing and trial order |
|
Processing |
CNC milling and proprietary heat treatment process |
|
Taper type |
Taper 7, 11, 12 degree |
|
Diameter |
29mm-60mm |
|
Face shape |
X-type and cross type |
|
Color |
Green,Gold, Black |
Applications:
• Dimensional Stone Industry
• Underground Mining
• Tunneling
Specification:
| Taper 7 Degree Cross Bit | ||||||
| Bit Dia. | For class of rock | Buttons | Taper | Weight | Part Number | |
| mm | inch | HxW | kg | |||
| 30 | 1 1/6 | 11~15 | 12x12x8 | 7º | 0.29 | 4148300141 |
| 32 | 1 1/4 | 11~15 | 12x12x8 | 7º | 0.31 | 4148300142 |
| 33 | 1 2/7 | 11~15 | 12x12x8 | 7º | 0.33 | 4148300143 |
| 34 | 1 1/3 | 11~15 | 12x12x8 | 7º | 0.34 | 4148300144 |
| 35 | 1 3/8 | 11~15 | 12x12x8 | 7º | 0.36 | 4148300145 |
| 36 | 1 3/7 | 11~15 | 13x12x8 | 7º | 0.37 | 4148300146 |
| 38 | 1 1/2 | 11~15 | 14x12x8 | 7º | 0.43 | 4148300147 |
| 40 | 1 4/7 | 11~15 | 15x12x8 | 7º | 0.47 | 4148300148 |
| 41 | 1 3/5 | 11~15 | 15x12x8 | 7º | 0.49 | 4148300149 |
| 42 | 1 2/3 | 11~15 | 15x12x8 | 7º | 0.51 | 4148300150 |
| 43 | 1 2/3 | 11~15 | 15x12x8 | 7º | 0.53 | 4148300151 |
| 45 | 1 7/9 | 11~15 | 17x14x8 | 7º | 0.58 | 4148300152 |
| 48 | 1 8/9 | 11~15 | 17x14x8 | 7º | 0.67 | 4148300153 |
| 50 | 2 | 11~15 | 19x14x8 | 7º | 0.72 | 4148300154 |
| 55 | 2 1/6 | 11~15 | 20x16x10 | 7º | 0.92 | 4148300155 |
| 60 | 2 1/3 | 11~15 | 20x16x10 | 7º | 1.19 | 4148300156 |
| Taper 11 Degree Cross Bit | ||||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | Part Number | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | kg | |
| 29 | 1 1/7 | 12x8 | - | 1 | 2 | 0.25 | 4148300233 | |
| 30 | 1 1/6 | 12x8 | - | 1 | 2 | 0.26 | 4148300234 | |
| 32 | 1 1/4 | 12x8 | - | 1 | 2 | 0.3 | 4148300235 | |
| 33 | 1 2/7 | 12x8 | - | 1 | 2 | 0.32 | 4148300236 | |
| 35 | 1 3/8 | 12x8 | - | 1 | 2 | 0.36 | 4148300237 | |
| 36 | 1 3/7 | 12x8 | - | 1 | 2 | 0.39 | 4148300238 | |
| 38 | 1 1/2 | 12x8 | - | 1 | 2 | 0.43 | 4148300239 | |
| 41 | 1 3/5 | 14x8 | - | 1 | 2 | 0.49 | 4148300240 | |
| Taper 12 Degree Cross Bit | ||||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | Part Number | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | kg | |
| 29 | 1 1/7 | 12x8 | - | 1 | 2 | 0.25 | 4148300282 | |
| 30 | 1 1/6 | 12x8 | - | 1 | 2 | 0.26 | 4148300283 | |
| 32 | 1 1/4 | 12x8 | - | 1 | 2 | 0.3 | 4148300284 | |
| 33 | 1 2/7 | 12x8 | - | 1 | 2 | 0.32 | 4148300285 | |
| 35 | 1 3/8 | 12x8 | - | 1 | 2 | 0.36 | 4148300286 | |
| 36 | 1 3/7 | 12x8 | - | 1 | 2 | 0.39 | 4148300287 | |
| 38 | 1 1/2 | 12x8 | - | 1 | 2 | 0.43 | 4148300288 | |
| 40 | 1 4/7 | 12x8 | - | 1 | 2 | 0.46 | 4148300289 | |
| 41 | 1 3/5 | 14x8 | - | 1 | 2 | 0.49 | 4148300290 | |

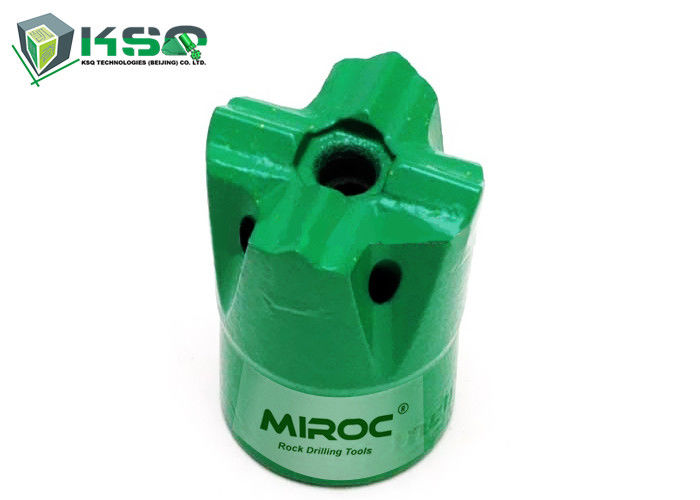

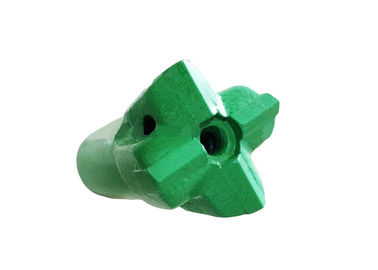

Photos:
