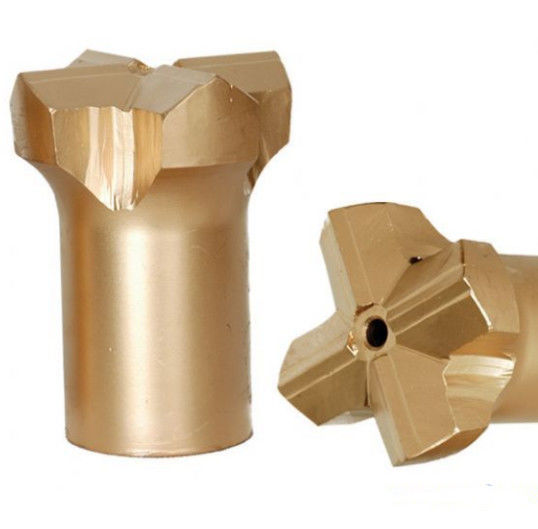

Tapered High Speed Cross Bits Button Drill Bit For Rock Drilling

Tapered High Speed Cross Bits Button Drill Bit For Rock Drilling

  • Tapered High Speed Cross Bits Button Drill Bit For Rock Drilling
  • Tapered High Speed Cross Bits Button Drill Bit For Rock Drilling
Tapered High Speed Cross Bits Button Drill Bit For Rock Drilling
Product Details:
Place of Origin: Shangdong,China
Brand Name: MIROC
Certification: ISO9001
Model Number: Tapered Cross Type Button Drill Bit
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10-22days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide And 45CrNiMoVA Color: Green,Golden Or Based On Demand
Use: Tunneling, Mining,Quarrying,Construction Design: Precise Design Suit Particular Needs
Service: Product Customization
High Light:

metal drill bit

,

short drill bits



Tapered High Speed Cross Bits Button Drill Bit For Rock Drilling



Describtion

Miroc tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.



Why you choose Miroc button bit?

1. Tapered button bits connect with tapered drill rod perfectly for drilling holes
2. Stable and mature welding technology ensure high quality of bits
3. Accurate dimension of taper degree perfectly matches the rods
4. work reliable and very cost-effective

5. High grade tungsten carbide inserts
6  Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



Product Technical Reference

Small Hole

Drilling Tools





Taper Degree



Bit Dia.

(mm) / inch



Chisel Size(H*W)



Weight

(kg)

Tapered

Cross Type Bit



          7°





30,  11/6



12*12*8



0.29

32,  11/4

12*12*8

0.31

33,  12/7

12*12*8

0.33

34,  11/3

12*12*8

0.34

35,  13/8

12*12*8

0.36

36,  13/7

13*12*8

0.37

38,  11/2

14*12*8

0.43

40,  14/7

15*12*8

0.47

41,  13/5

15*12*8

0.49

42,  12/3

15*12*8

0.51

43,  12/3

15*12*8

0.53

45,  17/9

17*14*8

0.58

48,  18/9

17*14*8

0.67

50,   2

19*14*8

0.72

55,  21/6

20*16*10

0.92

60,  21/3

20*16*10

1.19

Tapered

Cross Type Bit

        11°

29,  11/7

12*8

0.25

30,  11/6

12*8

0.26

32,  11/4

12*8

0.3

33,  12/7

12*8

0.32

35,  13/8

12*8

0.36

36,  13/7

12*8

0.39

38,  11/2

12*8

0.43

41,  13/5

14*8

0.49



Tapered

Cross Type Bit

         12°

29,  11/7

12*8

0.25

30,  11/6

12*8

0.26

32,  11/4

12*8

0.30

33,  12/7

12*8

0.32

35,  13/8

12*8

0.36

36,  13/7

12*8

0.39

38,  11/2

12*8

0.43

40,  14/7

12*8

0.46

41,  13/5

14*8

0.49
