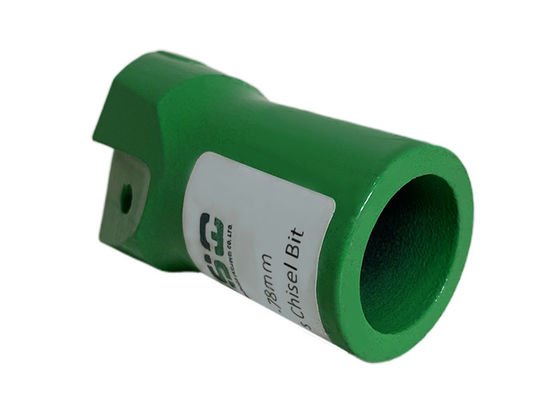

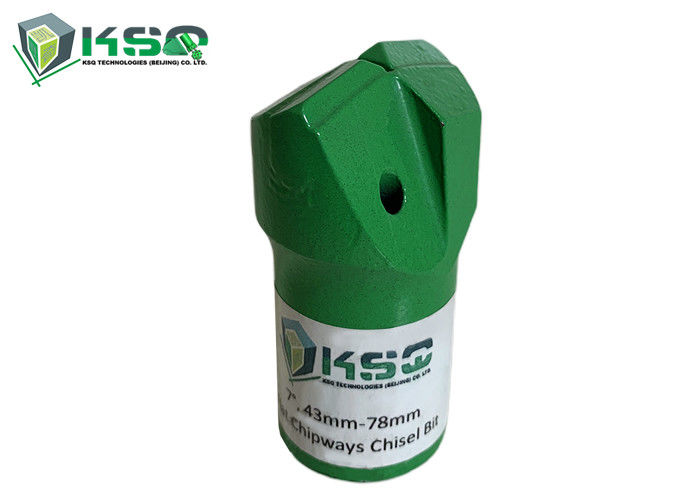

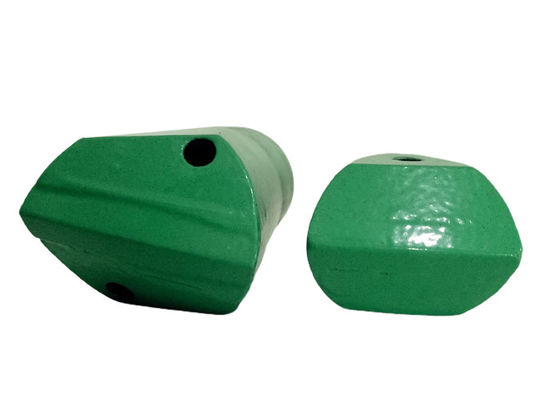

Chisel Drill Bit connected to Hex22 Shank Rod used for light-duty rock drill Y6
Our drill bits are made with high quality alloy steel bar and tungsten carbides, through heat treatment.
Caracteristique:
(1)Button bit taper angle: 4°,4°46″,6°,7°,11°,12°
(2)Models:chisel bit/cross bit/button bit
(3)Diam:20-45 mm
(4)Button bit shape:spherical/parabolic
(5)Socket inside diameter:15/19/22/25(mm)
Application
Widely used in drilling holes with depth less than 5 meters and diameter ranged in 20-45 mm by light-duty rock drill, like Y6.
Product Codes System:
|
Tapered Button Bits:
BS432-7D-(22)(23)
BS = Button Bit, Short Skirt
4 = Number of Tungsten Carbide Inserts
32 = Bit Diameter in mm
---
7D = 7 Degrees Taper
---
(22) (23) = Bit Inside Diameter in mm, specific for Tapered Rod Diameter
|
Tapered Chisel Bits:
C26-7D-(22)(23)
C = Chisel Bit
26 = Bit Diameter in mm
---
7D = 7 Degrees Taper
---
(22) (23) = Bit Inside Diameter in mm, specific for Tapered Rod
Diameter
|
|
Tapered Cross Type Bits:
CR(S)45-H25
CR = Cross Type Bit, Tungsten Carbide Inserts
CRS = Cross Type Bit, Steel Inserts
64 = Bit Diameter in mm
---
H25 = Thread System
Tapered Drill Rods:
H22-7D-600
H22 = Hex 22 mm Tapered Rod
---
7D = 7 Degrees Taper
---
600 = Effective Drill Rod Length in mm
|
|
Tapered button bit to drill quarry granite rock
Bit diameter: 32mm to 42mm
Body height: 50mm, 55mm,60mm
Taper/Grade: 6 degree, 7 degree, 11 dregree, 12 degree
Shank Diameter: for Hex22 tapered rod
|
Description
|
Diameter
|
Length
|
Water hole
|
|
Taper degree: 4°, 6°, 7°, 11°, 12°
Socket inside d=15,19,22,25mm
|
mm
|
mm
|
2
|
|
20
|
65
|
2
|
|
23
|
65
|
2
|
|
25
|
69
|
2
|
|
28
|
60
|
2
|
|
30
|
55 88
|
2
|
|
32
|
55 64 71 80
|
2
|
|
34
|
71 80
|
2
|
|
36
|
74
|
2
|
|
38
|
74
|
2
|
|
40
|
74
|
2
|
|
42
|
74
|
2
|
|
45
|
74
|
2
|
Related productions
|
Taper button bit - For 22 mm (7⁄8") hex. Rod
|
|
|
Bit Diameter
|
mm
|
32
|
33
|
34
|
35
|
36
|
38
|
40
|
42
|
|
inch
|
1 1/4
|
1 2/7
|
1 1/3
|
1 3/8
|
1 3/7
|
1 1/2
|
1 4/7
|
1 2/3
|
|
|
Tungsten Carbide Button Number
|
4, 6, 7
|
|
Taper/Grade
|
6,7,11,12 degree
|
