Coal Mining Drilling Tools 7 Degree Tapered Chisel Bit For Rock Drill

Coal Mining Drilling Tools 7 Degree Tapered Chisel Bit For Rock Drill

  • Coal Mining Drilling Tools 7 Degree Tapered Chisel Bit For Rock Drill
Coal Mining Drilling Tools 7 Degree Tapered Chisel Bit For Rock Drill
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: 7 Degree Tapered Chisel Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standrad export packaging or customised
Delivery Time: 15-20 days
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Material: Carbide Tapered Degree: 7°, 11°, 12°
Connection: Hex 19, 22, 25 Bit Dia.: 26mm-78mm
Chipways: Normal, Oblique, Flat, Oblique Flat Chisel Size: 10x7,13.5x8 Etc. As Requirements
Color: Green, Black, Yellow Or Cutomized Packaging: Carton, Wooden Box, Plastic Box
High Light:

coal tapered chisel bit

,

7 degree tapered chisel bit

,

rock tapered chisel bit

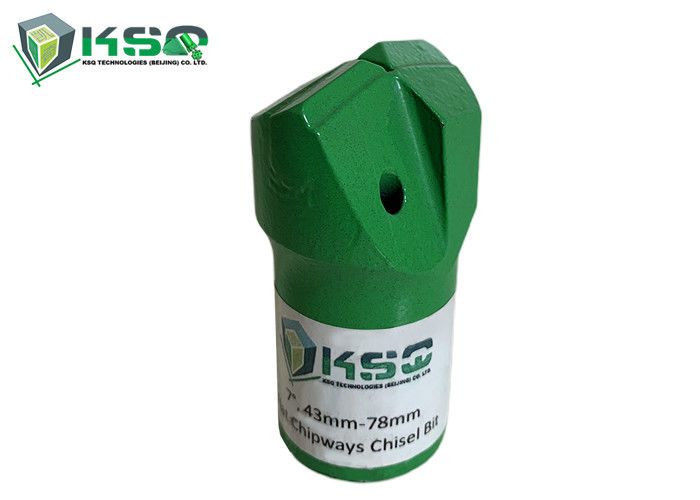

High Quality Coal Mining Drilling Tools 7 Degree Tapered  Chisel Bit for Rock Drill



Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have diferent characteristics when it comes to the "knock-off" index - the smaller angle will prevent the bit from spinning.



Applications

• Underground mining

• Dimensional Stone Industry
• Tunneling,quarrying



Feature

1.Tapered chisel bits connect with tapered drill rod for drilling holes

2.Stale and mature welding technology ensure good quality of bits

3.Accurate dimension of taper degree perfectly matches the rods

4.Work reliable and very cost-effective



Specification of tapered chisel bits

Part Number

Product Code and

Brief Description

Bit Diameter

(mm)

Bit Diameter

(inch)

Tip Size

(W x H, mm)

Weight

(kg)

4148300123

FC38-7D-23,

7° Taper Flat Chipways Chisel Bit

38 1 1/2 16 x 10 0.36
4148300124

FC40-7D-23,

7° Taper Flat Chipways Chisel Bit

40 1 4/7 16 x 10 0.38
4148300125

FC41-7D-23,

7° Taper Flat Chipways Chisel Bit

41 1 3/5 16 x 10 0.41
4148300126

FC42-7D-23,

7° Taper Flat Chipways Chisel Bit

42 1 2/3 16 x 10 0.43
4148300127

FC45-7D-23,

7° Taper Flat Chipways Chisel Bit

45 1 7/9 22 x 16 x 10 0.6
4148300128

FC46-7D-25,

7° Taper Flat Chipways Chisel Bit

46 1 4/5 22 x 16 x 10 0.61
 4148300129

FC48-7D-25,

7° Taper Flat Chipways Chisel Bit

48 1 8/9 22 x 16 x 10



0.63
