|Place of Origin:||China|
|Model Number:||Tapered Rock Drilling Chisel Bit|
|Minimum Order Quantity:||10 Pieces|
|Packaging Details:||Carton or Wooden Box|
|Delivery Time:||25 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||20000 Pieces Per Month|
|MOQ:||1 PCS||Application:||Mining Operations, Tunneling|
|Taper:||4°, 7°||Colors:||Green,Blue Or Based On Request|
tungsten carbide drill bit,
mining drilling bits

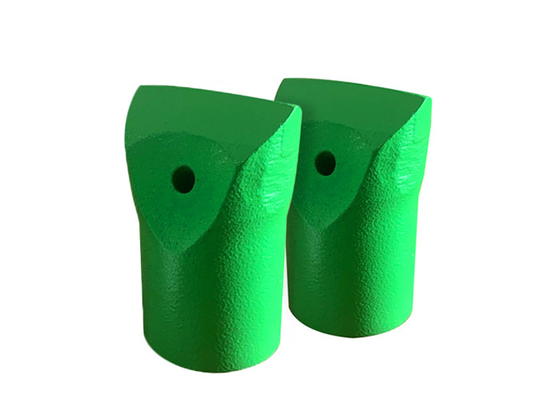

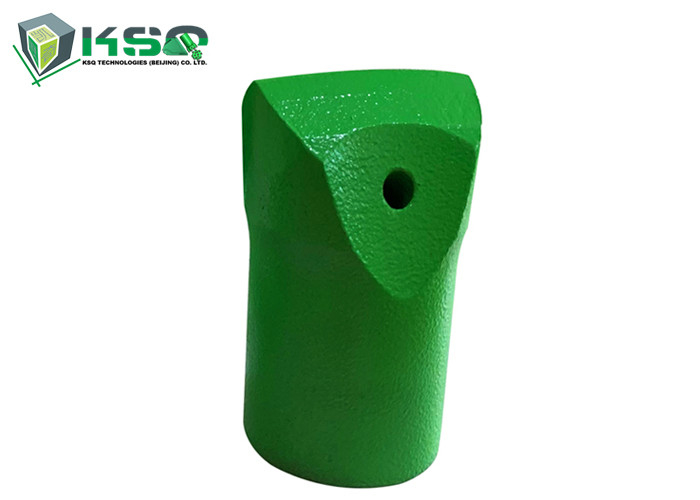

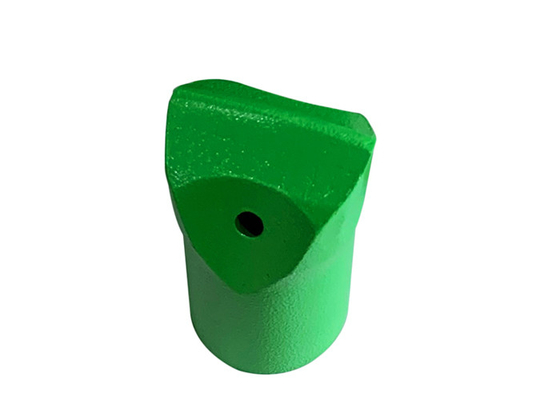

Tapered Chisel Drill Bit for Mining operations, Tunneling
Tapered drill bits connect tapered drill steel of rock drill for drilling holes.
Other similar tools:
1) Horseshoe Chisel Bit
2) Flat Chipways Chisel Bit
3) Oblique- Flat Chipways Chisel Bit
4) Cross-type Bit
5) Button Bit (Short skirt, Long skirt) and etc.
Tapered drill bits are used in granite and marble quarry, gold mine, railway, dimensional stone industry, underground mining, tunnels and etc. for drilling.
Basic Information :
|Diameter, mm||For class of clock||
height x width
|Taper angle||Weight, kg|
|20||10-14||12 x 6||4°||0.10|
|22||10-14||12 x 6||4°||0.12|
|24||10-14||12 x 6||4°||0.14|
|26||10-14||12 x 6||4°||0.16|
|28||10-14||13 x 8||7°||0.19|
|30||10-14||13.5 x 8||7°||0.22|
|32||10-14||13.5 x 8||7°||0.24|
|33||10-14||13.5 x 8||7°||0.25|
|34||10-14||13.5 x 8||7°||0.27|
|36||10-14||13.5 x 8||7°||0.29|
|38||10-14||13.5 x 8||7°||0.34|
|40||10-14||13.5 x 9.2||7°||0.40|
|41||10-14||13.5 x 9.2||7°||0.41|
|42||10-14||13.5 x 9.2||7°||0.43|
P.S. We can design and manufacture according to customers’ requirements of the bit diameter, number of air holes and carbide button shape.
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
We take pride in being the only manufacturers in China that has a diverse line of DTH bits that range from 3"-47"(76mm~1200mm) in diameter with most the leading hammer shanks.
Made from high quality alloy steel and advanced heat-treatment, our bits are ensured extreme protection against wear and fatigue. They're also available in four different bit-head designs - Convex, Flat, Concave and Drop center face, and four different inserts-Spherical,Ballistic,Semi-ballistic,Two-Step to tackle any challenge and rock formations.
