H19 H22 Chisel Bit Integral Drill Steel For Small Hole Drilling

H19 H22 Chisel Bit Integral Drill Steel For Small Hole Drilling

  • H19 H22 Chisel Bit Integral Drill Steel For Small Hole Drilling
  • H19 H22 Chisel Bit Integral Drill Steel For Small Hole Drilling
  • H19 H22 Chisel Bit Integral Drill Steel For Small Hole Drilling
H19 H22 Chisel Bit Integral Drill Steel For Small Hole Drilling
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: H22 (7/8") Integral Drill Steels
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standrad export packaging or customized
Delivery Time: 15-20 days
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Material: Alloy Steel Shank: H19x108mm, H22x108mm
Type: Integral Drill Rod, Integral Drill Steel Length: 400mm To 8000mm
Usage: Small Hole Drilling, Quarrying Color: Black Or Customised
Bit Dia.: 29mm To 41mm Processing Type: Forging
Machine Type: Portable Drill Machine Origin: China
Packing: Bundles, Wooden Cases, Etc.
High Light:

H19 integral drill steel

,

H22 integral drill steel

,

alloy steel integral drill rod

Description

Integral drill steels are crucial for peak productivity in all applications. Our drill steel has a high fatigue strength and toughness, and offers the highest wear resistance that ensures an efficient and economic drilling operation. When you partner with Sandvik, you can expect consistantly high quality and maximum operational dependability when it comes to small hole drilling applications.



The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.



• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry


Color: Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process

Type: Chisel Bit Integral Rod Hex 22 Shank 22 mm x 108 mm



Advantages

  • Excellence through economy
  • Shot peened for countering fatigue press
  • Induction brazed for controlled, consistent strong joints
  • Chemically treated for anti-corrosion

Applications
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling


Specification

Part Number Product Code and Brief Description

Length

(mm)

Length

(ft/inch)

Bit Diameter

(mm)

Weight

(kg)

4148300065

IH22-C38-800, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

800 2 5/8 38 3.1
4148300066

IH22-C39-1200, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

1200 4 39 4.3
4148300067

IH22-C36-1600, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

1600 5 1/4 36 5.2
4148300068

IH22-C36-1800, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

1800 6 36 6
4148300069

IH22-C32-2000, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

2000 6 5/9 32 6.7
4148300070

IH22-C27-2400, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

2400 7 7/8 27 8
4148300071

IH22-C27-3200, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

3200 10 1/2 27 10.2
4148300072

IH22-C32-3200, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

3200 10 1/2 32 10.3
4148300073

IH22-C30-6400, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

6400 21 30 20.1
4148300074

IH22-C26-8000, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

8000 26 1/4 26 25

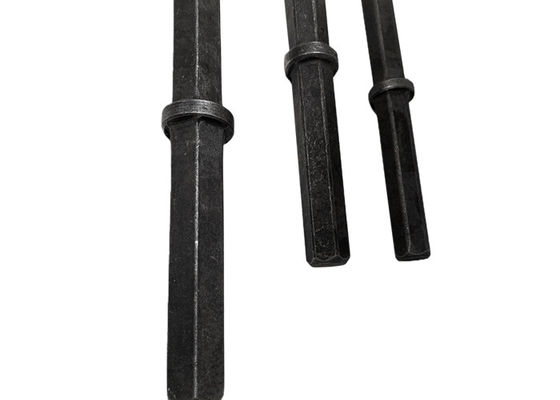

H19 H22 Chisel Bit Integral Drill Steel For Small Hole Drilling 0

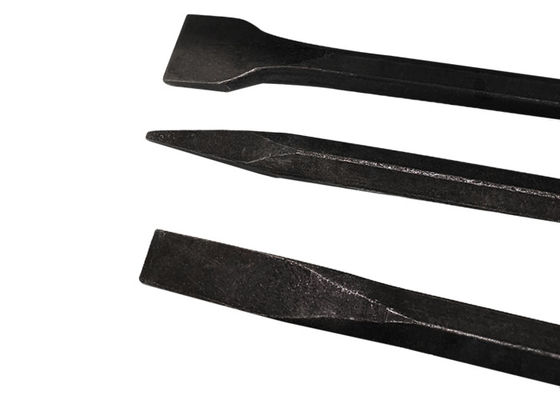

H19 H22 Chisel Bit Integral Drill Steel For Small Hole Drilling 1
