| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | 4148300054-4148300064 |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| High Light: | chromium molybdenum steel integral drill rod,heat treatment integral drill rod,h22 integral drill rod |
||
|---|---|---|---|

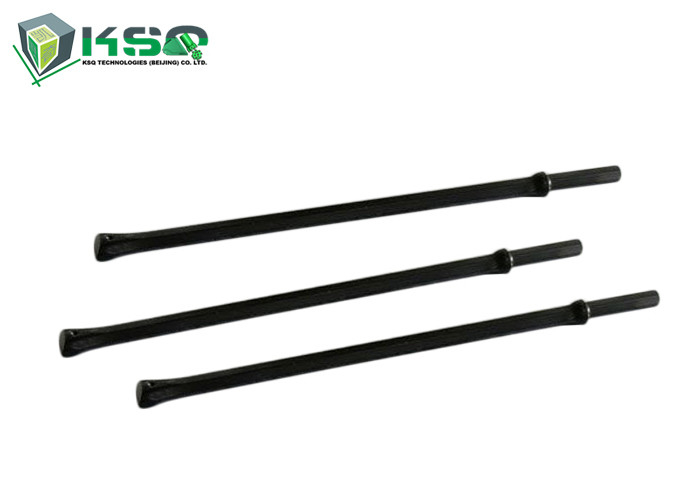

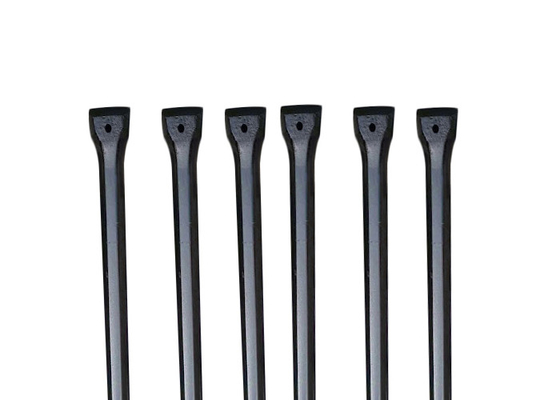

Chromium Molybdenum Steel Heat Treatment Process Integral Drill Rod
Description
Integral drill steels are crucial for peak productivity in all applications. Our drill steel has a high fatigue strength and toughness, and offers the highest wear resistance that ensures an efficient and economic drilling operation. When you partner with Sandvik, you can expect consistantly high quality and maximum operational dependability when it comes to small hole drilling applications.
The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process

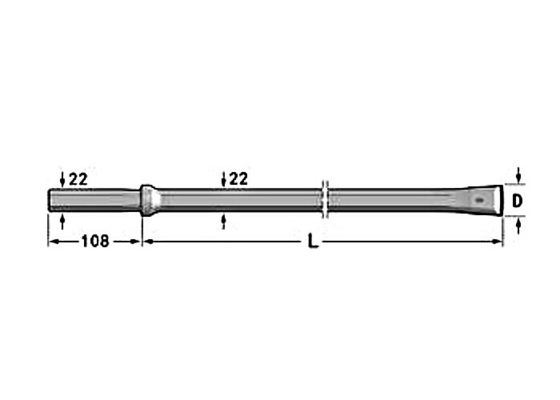

Type: Chisel Bit Integral Rod Hex 22 Shank 22 mm x 108 mm
Specification
| Part Number | Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Bit Diameter (mm) |
Weight (kg) |
| 4148300054 |
IH22-C34-400, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
400 | 1 1/3 | 34 | 1.7 |
| 4148300055 |
IH22-C33-800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
800 | 2 5/8 | 33 | 3 |
| 4148300056 |
IH22-C32-1200, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
1200 | 4 | 32 | 4.1 |
| 4148300057 |
IH22-C31-1600, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
1600 | 5 1/4 | 31 | 5.2 |
| 4148300058 |
IH22-C30-2000, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
2000 | 6 5/9 | 30 | 6.7 |
| 4148300059 |
IH22-C41-600, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
600 | 2 | 41 | 2.4 |
| 4148300060 |
IH22-C40-1200, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
1200 | 4 | 40 | 4.3 |
| 4148300061 |
IH22-C39-1800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
1800 | 6 | 39 | 6.2 |
| 4148300062 |
IH22-C38-2400-2,Chisel Bit Integral Rod Hex 22 Shank 22 mm x 108 mm |
2400 | 7 7/8 | 38 | 8 |
| 4148300063 |
IH22-C41-400, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
400 | 1 1/3 | 41 | 1.7 |
| 4148300064 |
IH22-C29-800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
800 | 2 5/8 | 29 | 3 |
