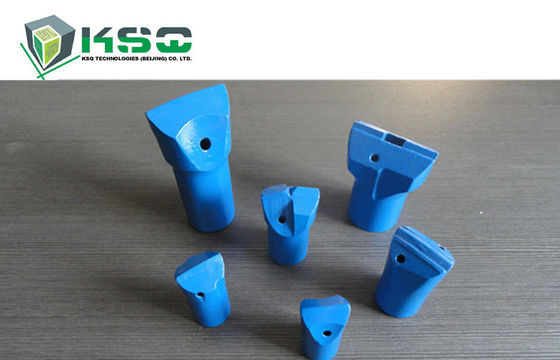

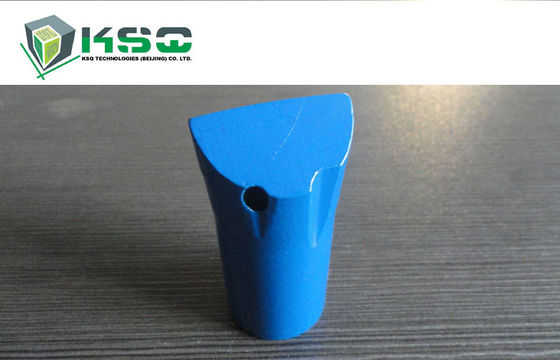

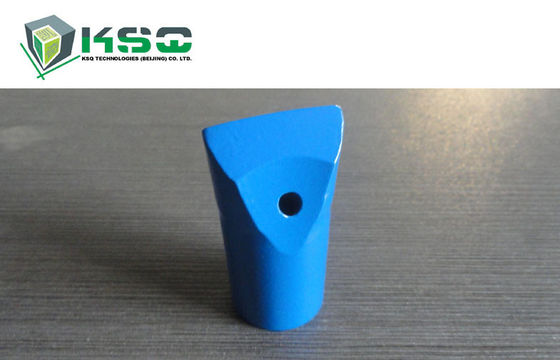

Tungsten Carbide Chisel Drill Bit

Tungsten Carbide Chisel Drill Bit

  • Tungsten Carbide Chisel Drill Bit
  • Tungsten Carbide Chisel Drill Bit
  • Tungsten Carbide Chisel Drill Bit
  • Tungsten Carbide Chisel Drill Bit
Tungsten Carbide Chisel Drill Bit
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: 4148300123-4148300134
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
High Light:

rock drill bits

,

mining drilling bits

Description


Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered chisel bits if the goal is to minimize hole deviation in small hole range drilling. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.



• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry


Color: Green,Blue or Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process

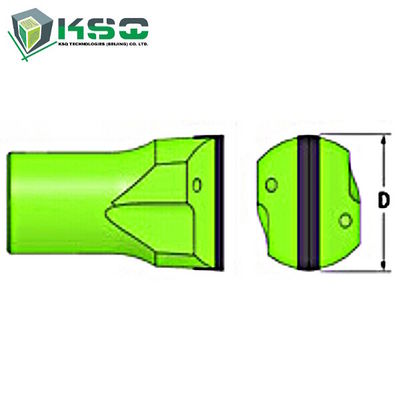

Type: 7° Tapered Flat Chipways Chisel Bit



Applications


• Dimensional Stone Industry
• Underground Mining
• Tunneling



Competitive Advantage



• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



specification

<

Part Number

Product Code and

Brief Description

Bit Diameter

(mm)

Bit Diameter

(inch)

Tip Size

(W x H, mm)

Weight

(kg)

4148300123

FC38-7D-23,

7° Taper Flat Chipways Chisel Bit

38 1 1/2 16 x 10 0.36
4148300124

FC40-7D-23,

7° Taper Flat Chipways Chisel Bit

40 1 4/7 16 x 10 0.38
4148300125

FC41-7D-23,

7° Taper Flat Chipways Chisel Bit

41 1 3/5 16 x 10 0.41
4148300126

FC42-7D-23,

7° Taper Flat Chipways Chisel Bit

42 1 2/3 16 x 10 0.43
4148300127

FC45-7D-23,

7° Taper Flat Chipways Chisel Bit

45 1 7/9 22 x 16 x 10 0.6
4148300128

FC46-7D-25,

7° Taper Flat Chipways Chisel Bit

46 1 4/5 22 x 16 x 10 0.61
4148300129

FC48-7D-25,

7° Taper Flat Chipways Chisel Bit

48 1 8/9 22 x 16 x 10 0.63
4148300130

FC50-7D-25,

7° Taper Flat Chipways Chisel Bit

50 2     22 x 16 x 10 0.65
4148300131

FC56-7D-25,

7° Taper Flat Chipways Chisel Bit

56 2 1/5 24 x 16 x 10 0.82
4148300132

FC60-7D-25,

7° Taper Flat Chipways Chisel Bit

60 2 1/3 26 x 16 x 10 0.91
4148300133

FC65-7D-25,

7° Taper Flat Chipways Chisel Bit

65 2 5/9 26 x 16 x 10 1.12
4148300134

FC80-7D-25,

7° Taper Flat Chipways Chisel Bit

80 3 1/7 36 x 16 x 10 1.4
