|Place of Origin:||Anhui,China|
|Model Number:||Ceramic Disc Filter|
|Minimum Order Quantity:||1 Pieces|
|Packaging Details:||Wooden Box or Seaworthy Package|
|Delivery Time:||15-25days after receiving payment and order confirmation|
|Payment Terms:||T/T, L/C, D/A, D/P, Western Union, MoneyGram|
|Supply Ability:||50 Sets per month|
|Type:||Ceramic Disc Filter||Filter Material:||Micro-hole Ceramic Filter Plate|
|Filter Area:||18m3||Filter Disk Number:||72pcs|
ceramic disc filter,
vacuum disc filter

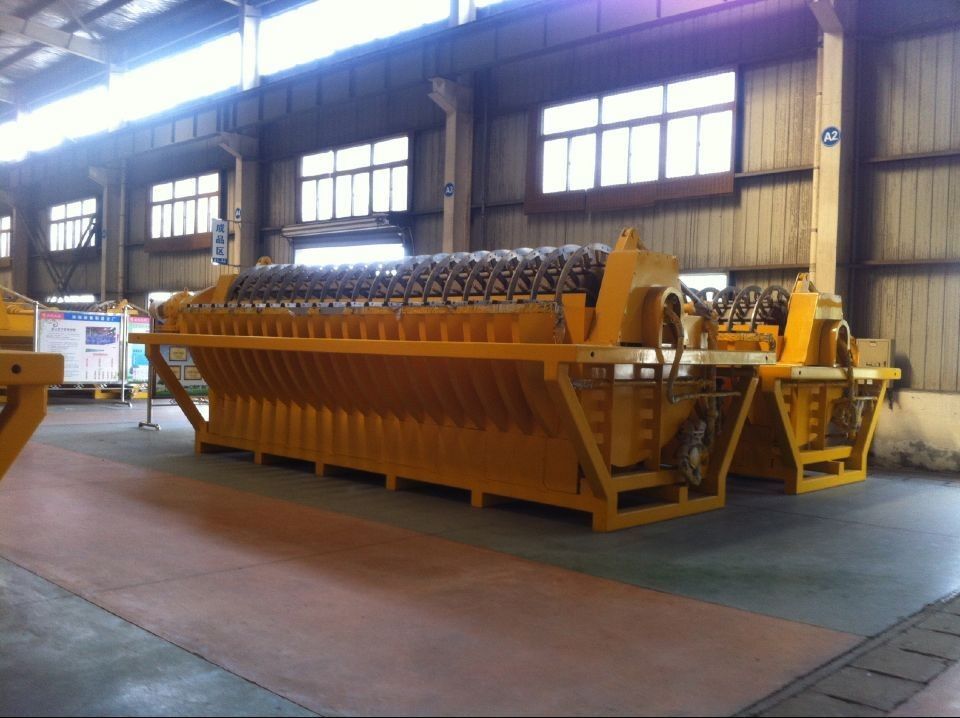

Precision Microhole Ceramic Vacuum Filter For Metal Ore Concentrate
Ceramic Vacuum Filter has been widely used in copper, iron, gold, silver, tin, aluminum, lead, zinc, nickel, palladium, cobalt, molybdenum, aluminum, phosphorus, coal, sulfur, silicon, quartz, mica, rare earth concentrate, tailings dewatering, Zinc Oxide, chemical industry lead oxide, zinc sulfide, electro slag, leaching slag, slag cement dehydration and environmental pollution as well as waste acid treatment.
The fineness of materials is from -200 to -450 and a variety of superfine materials.
|Technical Parameters of Filter Plate|
|Water flux(pure water pressure 0.15MPa)||≥6400L /h.m2|
|Pneumatic back flush test pressure||≥0.5Mpa|
|Assembly precision||Assembly ring plane and plate surface parallelism||±0.2mm|
|Assembly ring plane and the plate spacing||8±0.1mm|
|Installation disk precision||Assembly hole center and diagonal error||≤2mm|
|Each plate spacing for disk||5±1mm|
|The membrane surface abrasion total time (without scraper or other hard objects damage)||≥7000h|
Application at site for Ceramic Filter:
Characteristics of Ceramic Vacuum Filter :
1. High vacuum degree(0.09-0.098MPa),filter cake has low water content.
2. Solid content of liquid the maximum is 25ppm,repeated application is available,drainage is lessened.
3. It can save 90% energy or above in contrast with traditional filter with low consumption and low cost.
4. Filter cake cleaning process is added to clean proper materials.
5. It combines PLC,computer and automatic valve control with high automatization and labor force has been lowered.
6. Compact structure,covering less floor area,conventient installation and maintenance.
7. Advanced drainage system fits for any working conditons.
