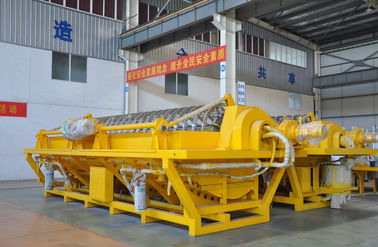

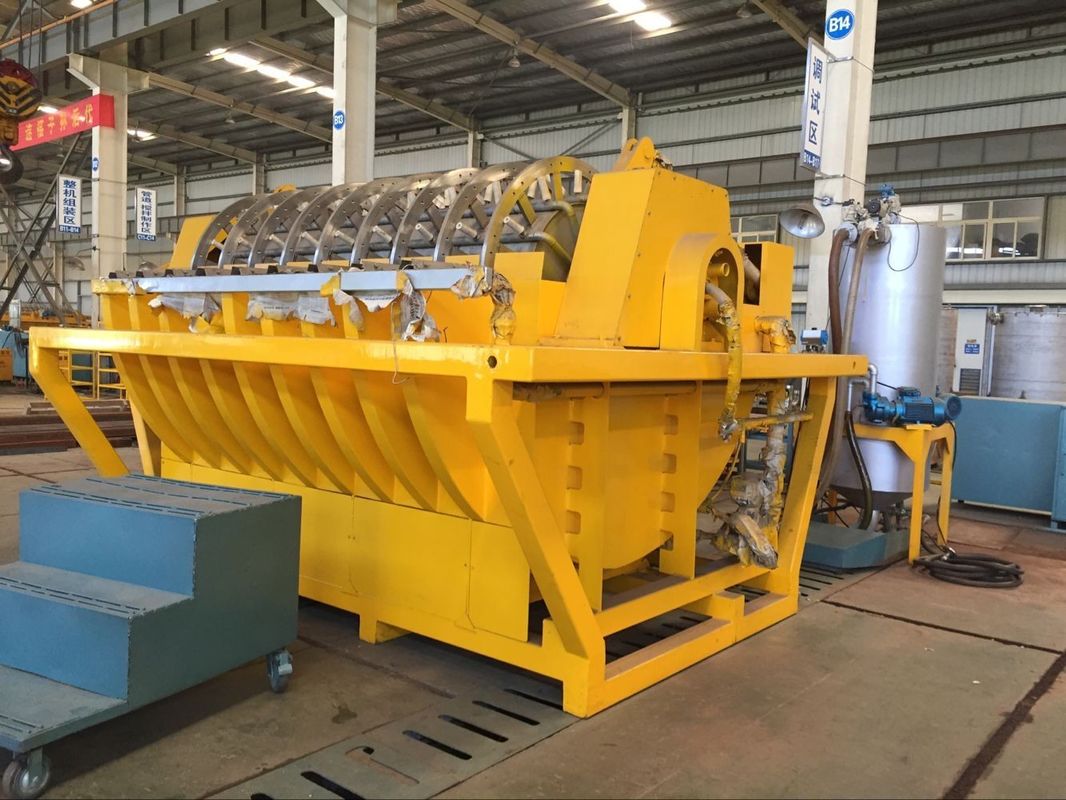

Drying Copper Ore Concentrate Ceramic Filter Disc Type Durable

Drying Copper Ore Concentrate Ceramic Filter Disc Type Durable

  • Drying Copper Ore Concentrate Ceramic Filter Disc Type Durable
  • Drying Copper Ore Concentrate Ceramic Filter Disc Type Durable
Drying Copper Ore Concentrate Ceramic Filter Disc Type Durable
Product Details:
Place of Origin: Anhui,China
Brand Name: MIROC
Certification: ISO9001
Model Number: Disc Ceramic Filter
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: negotiation
Packaging Details: Wooden Box or Seaworthy Package
Delivery Time: 15-25days after receiving payment and order confirmation
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 Sets per month
Contact Now
Detailed Product Description
Type: Ceramic Disc Filter Filter Material: Micro-hole Ceramic Filter Plate
Filter Area: 4m3 Filter Disk Number: 24pcs
Disc Diameter: 1510mm Length*Width*Height: 2460x2480x2100mm
High Light:

ceramic disc filter


vacuum disc filter

Drying Copper Ore Concentrate Ceramic Filter Disc Type Durable


Ceramic Vacuum Filter has been widely used in copper, iron, gold, silver, tin, aluminum, lead, zinc, nickel, palladium, cobalt, molybdenum, aluminum, phosphorus, coal, sulfur, silicon, quartz, mica, rare earth concentrate, tailings dewatering, Zinc Oxide, chemical industry lead oxide, zinc sulfide, electro slag, leaching slag, slag cement dehydration and environmental pollution as well as waste acid treatment.
The fineness of materials is from -200 to -450 and a variety of superfine materials.


Technical Parameters of Filter Plate
Name Parameters
Water flux(pure water pressure 0.15MPa) ≥6400L /h.m2
Pneumatic back flush test pressure ≥0.5Mpa
Assembly precision Assembly ring plane and plate surface parallelism ±0.2mm
Assembly ring  plane and the plate spacing 8±0.1mm
Installation disk precision Assembly hole center and diagonal error ≤2mm
Each plate spacing for disk   5±1mm
The membrane surface abrasion total time                          (without scraper or other hard objects damage) ≥7000h
Poriness ≥42%
Bore diameter 2um-10um
Breaking strength ≥30Mpa


Application at site for Ceramic Filter:


Drying Copper Ore Concentrate Ceramic Filter Disc Type Durable 0


Characteristics of Ceramic Vacuum Filter :


1.High vacuum degree(0.09-0.098MPa),filter cake has low water content.

2.Solid content of liquid the maximum is 25ppm,repeated application is available,drainage is lessened.

3.It can save 90% energy or above in contrast with traditional filter with low consumption and low cost.

4.Filter cake cleaning process is added to clean proper materials.

5.It combines PLC,computer and automatic valve control with high automatization and labor force has been lowered.

6.Compact structure,covering less floor area,conventient installation and maintenance.

7.Advanced drainage system fits for any working conditons.
