|Place of Origin:||Anhui,China|
|Model Number:||Vacuum Ceramic Filter|
|Minimum Order Quantity:||1 Pieces|
|Packaging Details:||Wooden Box or Seaworthy Package|
|Delivery Time:||15-25days after receiving payment and order confirmation|
|Payment Terms:||T/T, L/C, D/A, D/P, Western Union, MoneyGram|
|Supply Ability:||50 Sets per month|
|Type:||Vacuum Ceramic Filter||Filter Material:||Micro-hole Ceramic Filter Plate|
|Filter Area:||21m3||Filter Disk Number:||84pcs|
ceramic disc filter,
vacuum disc filter

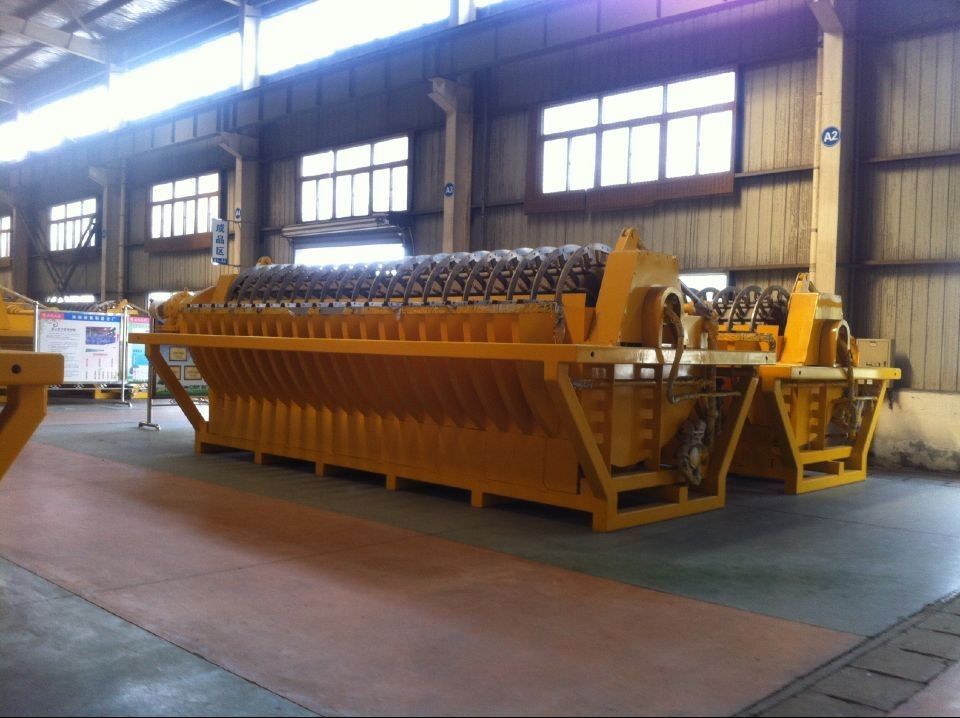

Vacuum Ceramic Filter for Separate Mine Slurry , Filtration Equipment
Ceramic Vacuum Filter has been widely used in copper, iron, gold, silver, tin, aluminum, lead, zinc, nickel, palladium, cobalt, molybdenum, aluminum, phosphorus, coal, sulfur, silicon, quartz, mica, rare earth concentrate, tailings dewatering, Zinc Oxide, chemical industry lead oxide, zinc sulfide, electro slag, leaching slag, slag cement dehydration and environmental pollution as well as waste acid treatment.
The fineness of materials is from -200 to -450 and a variety of superfine materials.
|Technical Parameters of Filter Plate|
|Water flux(pure water pressure 0.15MPa)||≥6400L /h.m2|
|Pneumatic back flush test pressure||≥0.5Mpa|
|Assembly precision||Assembly ring plane and plate surface parallelism||±0.2mm|
|Assembly ring plane and the plate spacing||8±0.1mm|
|Installation disk precision||Assembly hole center and diagonal error||≤2mm|
|Each plate spacing for disk||5±1mm|
|The membrane surface abrasion total time (without scraper or other hard objects damage)||≥7000h|

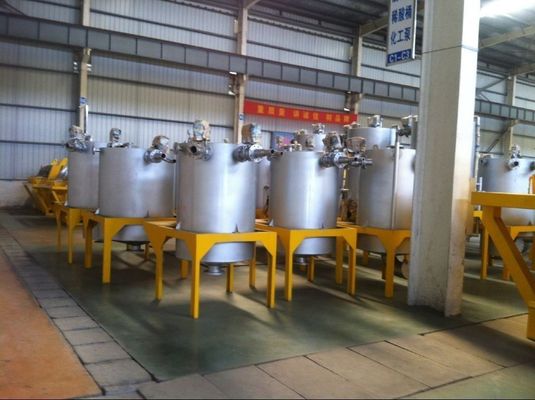

Application at site for Ceramic Filter:
Characteristics of Ceramic Vacuum Filter :
1. High vacuum degree(0.09-0.098MPa),filter cake has low water content.
2. Solid content of liquid the maximum is 25ppm,repeated application is available,drainage is lessened.
3. It can save 90% energy or above in contrast with traditional filter with low consumption and low cost.
4. Filter cake cleaning process is added to clean proper materials.
5. It combines PLC,computer and automatic valve control with high automatization and labor force has been lowered.
6. Compact structure,covering less floor area,conventient installation and maintenance.
7. Advanced drainage system fits for any working conditons.
KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries.
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.
Our portfolio includes:
Consumables used in the mining and construction industries
Equipment used in the mining and construction industries
Spare parts used for the equipment we sell for the mining and construction industries
Green technologies, such as products that reduce electric consumption or use alternate sources of energy (solar, wind, etc.)
Contact Person: Yingkai
