Product Details:
Place of Origin: Shangdong, China
Brand Name: MIROC
Certification: API
Model Number: Hex22*108
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: negotiation
Packaging Details: Wooden Plate
Delivery Time: 10-25days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide Use: Tunneling, Mining,Quarrying,Construction
Processing Type: CNC Milling And Proprietary Heat Treatment Process Type: Tapered Integral Drill Rods
Equiped: With Pneumatic & Gasoline Rock Drill Length: 200/300/400/500/800/1000/1200/1600
High Light:

stone drilling tools

,

integral drill rods

Hex22*108 Mining Tools Tungsten Carbide Tipped Shank Chisel Type Integral Drill Steel Rock Drill Rods For Quarry



Describtion



Integral Drill Steels usually have forged collar, and are fixed length with a shank at one end and a bit at the other. This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. They are able to drill to a depth equivalent to their effective length. The bit may consist of a single chisel shaped tungsten carbide insert or four such inserts. Holes are typically drilled in 0.4m increments to accommodate the air-leg feed length. To drill deep holes (up to 2.0m), the rods are designed to be used in a series where the length of any rod used is longer and the head size is slightly smaller than the one used just before it in the sequence. To do this, a series of rods must be produced so that the bit diameter is reduced for each increase in length of rod to prevent jamming of the bit in the hole.

Integral Drill Steel is mainly used in small-hole drilling, such as stone quarrying, foundation drilling,tunneling, underground mining, road cutting, and trenching and so on, and equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, which can be used for drilling bore hole diameter from 23mm to 45mm usually.



Specification

Shank Style Effective Length Head Diameter
mm feet/inch mm inch
Hex19 × 108mm 400 ~ 4,000 1’ 4” ~ 13’ 1” 23 ~ 35 27/32 ~ 1 3/8
Hex22 × 108mm 400 ~ 9,600 1’ 4” ~ 31’ 6” 26 ~ 41 1 1/32 ~ 1 39/64
Hex25 × 108mm 600 ~ 6,400 1’ 11 5/8” ~ 21’ 33 ~ 45 1 19/64 ~ 1 25/32
Hex25 ×159mm 800 ~ 6,400 2’ 7” ~ 21’ 35 ~ 42 1 3/8 ~ 1 21/32



(1)Material:55SiMnMo
(2)Shank size:hex19/22/25mm including plug hole rods
(3)Bit Dia:30-41mm
(4)Length:0.4m-5m...
(5)Package:wooden case/bundles/crate

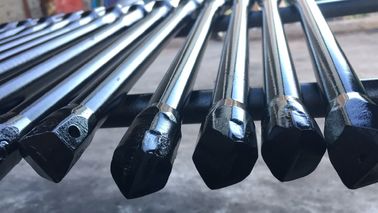

Quarry Mining Tools Integral Drill Rods Tungsten Carbide Tipped Shank Chisel Type 0

Note: The above table only indicates the most commonly used and produced products range, all of them are produced with chisel bit type, for cross bits type and other special requested products, please contact us with your requested details.
Quarry Mining Tools Integral Drill Rods Tungsten Carbide Tipped Shank Chisel Type 1Quarry Mining Tools Integral Drill Rods Tungsten Carbide Tipped Shank Chisel Type 2
Quarry Mining Tools Integral Drill Rods Tungsten Carbide Tipped Shank Chisel Type 3
Quarry Mining Tools Integral Drill Rods Tungsten Carbide Tipped Shank Chisel Type 4
