| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | H22 (7/8") Integral Drill Steels |
| Minimum Order Quantity: | 20 |
|---|---|
| Price: | Negotiation |

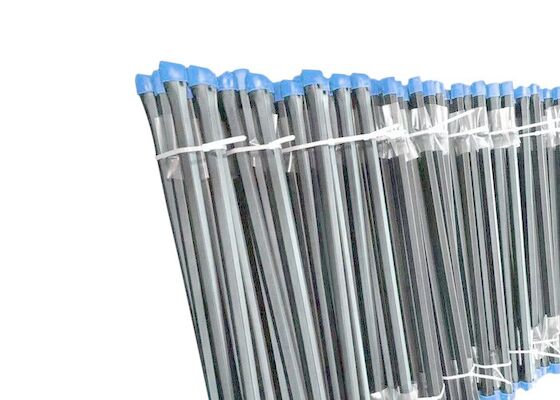

| Packaging Details: | Standrad export packaging or customized |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000pcs per month |
| Shank: | H22x108mm | Name: | Integral Drill Rod |
|---|---|---|---|
| Length: | 400mm-8000mm | Usage: | Small Hole Drilling |
| Color: | Black Or Customised | Bit Dia.: | 29mm-41mm |
| Advantage: | OEM | Processing Type: | Forging |
| Machine Type: | Drilling Tool | ||
| High Light: | dia 42mm integral drill steel,quarrying integral drill steel,quarrying integral drill rod |
||

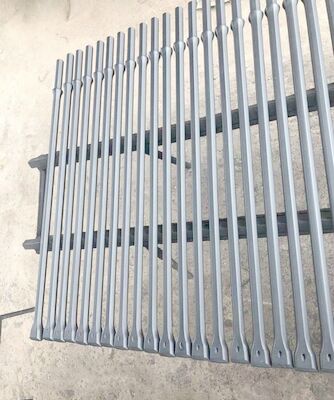

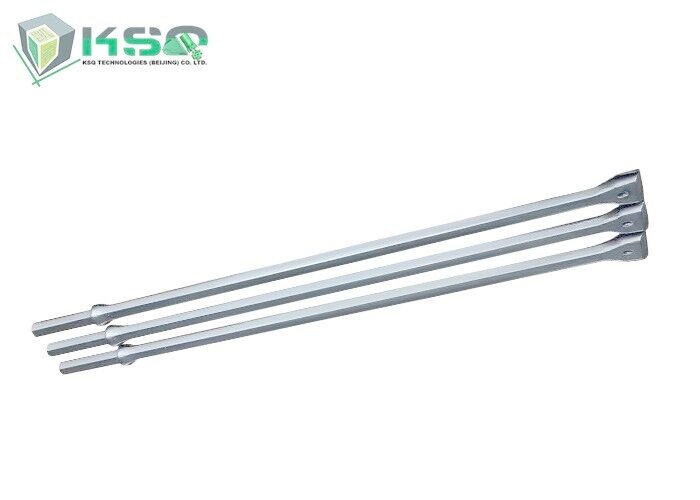

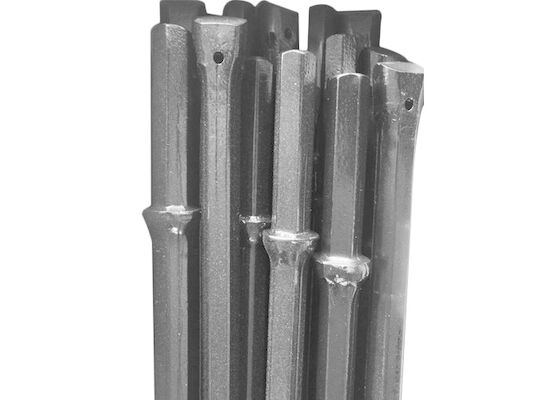

Chisel Bit Dia42mm H22(7/8") X108mm Integral Drill Steel For Quarrying
Description
Integral drill steels are crucial for peak productivity in all applications. Our drill steel has a high fatigue strength and toughness, and offers the highest wear resistance that ensures an efficient and economic drilling operation.
The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: Chisel Bit Integral Rod Shank H 22 mm x 108 mm
Applications
High quality and maximum operational dependability when it comes to small hole drilling applications.
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling
Competitive Advantage
• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
• High grade tungsten carbide inserts
Specification
| Part Number | Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Bit Diameter (mm) |
Weight (kg) |
| 4148300062 |
IH22-C42-400, Chisel Bit Integral Rod , Shank 22 mm x 108 mm |
400 | 1 1/3 | 42 | 1.8 |
| 4148300063 |
IH22-C41-400, Chisel Bit Integral Rod , Shank 22 mm x 108 mm |
400 | 1 1/3 | 41 | 1.7 |
| 4148300064 |
IH22-C29-800, Chisel Bit Integral Rod , Shank 22 mm x 108 mm |
800 | 2 5/8 | 29 | 3.0 |
| 4148300065 |
IH22-C38-800, Chisel Bit Integral Rod , Shank 22 mm x 108 mm |
800 | 2 5/8 | 38 | 3.1 |
| 4148300066 |
IH22-C39-1200, Chisel Bit Integral Rod , Shank 22 mm x 108 mm |
1200 | 4 | 39 | 4.3 |
| 4148300067 |
IH22-C36-1600, Chisel Bit Integral Rod , Shank 22 mm x 108 mm |
1600 | 5 1/4 | 36 | 5.2 |
| 4148300068 |
IH22-C36-1800, Chisel Bit Integral Rod , Shank 22 mm x 108 mm |
1800 | 6 | 36 | 6.0 |
| 4148300069 |
IH22-C32-2000, Chisel Bit Integral Rod , Shank 22 mm x 108 mm |
2000 | 6 5/9 | 32 | 6.7 |
| 4148300070 |
IH22-C27-2400, Chisel Bit Integral Rod , Shank 22 mm x 108 mm |
2400 | 7 7/8 | 27 | 8.0 |
| 4148300071 |
IH22-C27-3200, Chisel Bit Integral Rod , Shank 22 mm x 108 mm |
3200 | 10 1/2 | 27 | 10.2 |
| 4148300072 |
IH22-C32-3200, Chisel Bit Integral Rod , Shank 22 mm x 108 mm |
3200 | 10 1/2 | 32 | 10.3 |
| 4148300073 |
IH22-C30-6400, Chisel Bit Integral Rod , Shank 22 mm x 108 mm |
6400 | 21 | 30 | 20.1 |
| 4148300074 |
IH22-C26-8000, Chisel Bit Integral Rod , Shank 22 mm x 108 mm |
8000 | 26 1/4 | 26 | 25.0 |
