| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | 4148300027-4148300043 |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| High Light: | tungsten carbide rod,integral drill rods |
||
|---|---|---|---|
Description
The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process

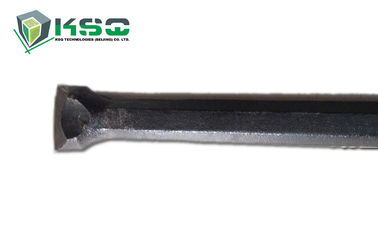

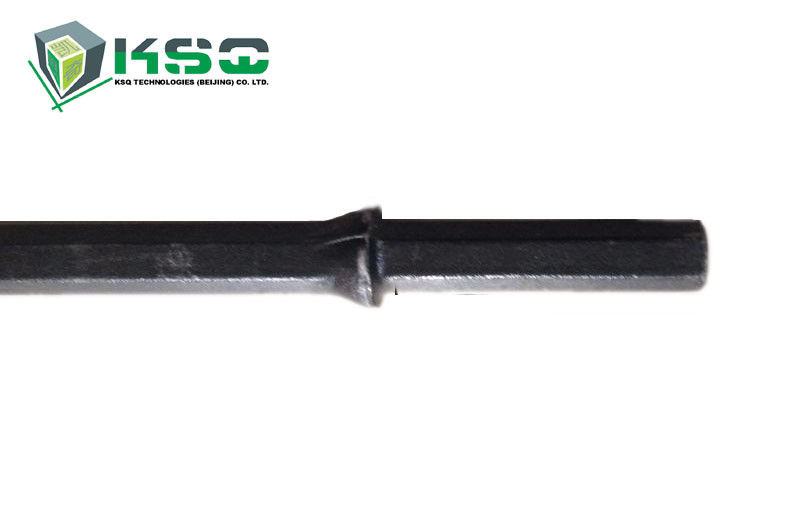

Type: Chisel Bit Integral Rod Hex 22 Shank 22 mm x 108 mm
Applications
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling
Competitive Advantage
• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
• High grade tungsten carbide inserts
specification
<
| Part Number | Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Bit Diameter (mm) |
Weight (kg) |
| 4148300027 |
IH22-C25-3200, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
3200 | 10 1/2 | 25 | 7.5 |
| 4148300035 |
IH22-C34-800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
800 | 2 5/8 | 34 | 3 |
| 4148300036 |
IH22-C33-1600, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
1600 | 5 1/4 | 33 | 5.2 |
| 4148300037 |
IH22-C32-2400, Chisel Bit Integral Rod Hex 22,
Shank 22 mm x 108 mm |
2400 | 7 7/8 | 32 | 8 |
| 4148300038 |
IH22-C31-3200, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
3200 | 10 1/2 | 31 | 10.2 |
| 4148300039 |
IH22-C30-4000, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
4000 | 13 1/8 | 30 | 12.9 |
| 4148300040 |
IH22-C29-4800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
4800 | 15 3/4 | 29 | 15.1 |
| 4148300041 |
IH22-C28-5600, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
5600 | 18 3/8 | 28 | 17.6 |
| 4148300042 |
IH22-C27-6400, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
6400 | 21 | 27 | 20.1 |
| 4148300043 |
IH22-C26-7200, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm |
7200 | 23 5/8 | 26 | 22.5 |
