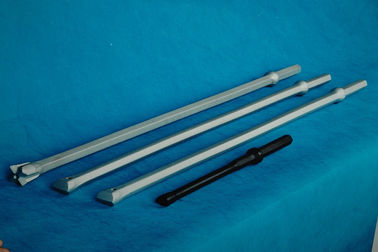

Chisel Bit Integral Drill Steels Taper Drill Rod Hex19 - H22 Length 400-8000mm

Chisel Bit Integral Drill Steels Taper Drill Rod Hex19 - H22 Length 400-8000mm

  • Chisel Bit Integral Drill Steels Taper Drill Rod Hex19 - H22 Length 400-8000mm
  • Chisel Bit Integral Drill Steels Taper Drill Rod Hex19 - H22 Length 400-8000mm
  • Chisel Bit Integral Drill Steels Taper Drill Rod Hex19 - H22 Length 400-8000mm
  • Chisel Bit Integral Drill Steels Taper Drill Rod Hex19 - H22 Length 400-8000mm
Chisel Bit Integral Drill Steels Taper Drill Rod Hex19 - H22 Length 400-8000mm
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: GB / API / ISO
Model Number: rod
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Wooden Plate or Based on customers
Delivery Time: 1 - 15 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Material: High Strength Alloy Steel Processing: Forging
Button Bit Shape: Cross / Chisel Model Number: Integral Drill Rod
Use: Hard Rock Drill Advanges: Original Equipment Manufacturer
High Light:

tungsten carbide rod

,

stone drilling tools

Chisel Bit Integral Drill Steels Taper Drill Rod Hex19 - H22 Length 400-8000mm





Description



Integral drill steel rod is used by a hand held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 24mm to 44mm usually.

Regarding Integral drill steels,the quality of a steel material and a tungsten carbide is very important to get good drilling performance.

According to different application, different lengths are available from 600mm to 9600mm usually.

Features & benefits

  • Wide selection of rods
  • High quality steel



Specifications



(1)Steel grade: 95CrMo equivalent to SANDBAR 20 or C253, 55SiMnMo

(2)Shank size: hex19mm hex.22mm, hex.25mm including Plug Hole Rod

(3)Head Diameter: 24mm-44mm

(4)Length: 0.4m - 8m

(5)Package: in wooden case or in bundles.

(6)Productivity: 20000pcs / month




specification


Hex Tapered Rod ,  7 ° ,  11° , 12°
  Length (mm) Weight (Kg) PN.
1 600 1.93 4148300179
2 800 2.54 4148300180
3 1000 3.15 4148300181
4 1200 3.76 4148300182
5 1500 4.68 4148300183
6 1600 4.98 4148300184
7 1800 5.59 4148300185
8 2000 6.2 4148300186
9 2200 6.81 4148300187
10 2300 7.12 4148300188
11 2400 7.42 4148300189
12 2500 7.73 4148300190
13 2600 8.03 4148300191
14 3000 9.25 4148300192
15 3500 10.78 4148300193
16 4000 12.3 4148300194
17 4500 13.83 4148300195
18 5000 15.35 4148300196
19 5500 16.88 4148300197
20 6000 18.3 4148300198
Shank 25 x 108 mm (1” x 4 1/4”)
  Length (mm) Weight (Kg) PN.
1 4000 16.1 4148300199
2 4700 18.9 4148300200
3 5000 22.1 4148300201
4 5500 22.1 4148300202
5 6000 24.1 4148300203
Chisel Bit Integral Drill Steel
Shank 19 x 108 mm (3/4” x 4 1/4”)
  Length (mm) Bit Diameter (mm) PN.
1 400 29 4148300000
2 500 29 4148300001
3 800 28 4148300002
4 1000 28 4148300003
5 1200 27 4148300004
6 1600 27 4148300005
7 2400 26 4148300006
8 3200 25 4148300007
9 4000 24 4148300008
10 400 24 4148300009
11 800 23 4148300010
12 600 27 4148300011
13 1200 24 4148300012
14 2000 24 4148300013
15 2400 24 4148300014
16 2700 24 4148300015
17 400 35 4148300016
18 800 34 4148300017
Chisel Bit Integral Drill Steel
Shank 22 x 108 mm (7/8” x 4 1/4”)
  Length (mm) Bit Diameter (mm) PN.
1 400 24 4148300018
2 400 29 4148300019
3 600 27 4148300020
4 800 23 4148300021
5 800 28 4148300022
6 1200 23 4148300023
7 1600 27 4148300024
8 2000 28 4148300025
9 2400 26 4148300026
10 3200 25 4148300027
Plug Hole Integral Drill Steel
Shank 19 x 108 mm (3/4” x 4 1/4”)
  Length (mm) Bit Diameter (mm) PN.
1 210 17 4148300028
2 210 20 4148300029
3 210 22 4148300030
4 260 20 4148300031
5 260 22 4148300032
6 310 22 4148300033
7 340 20 4148300034
Chisel Bit, 4°, 7 ° ,  11° , 12°
  Length (mm) Chisel Size (H x W) mm Weight (Kg)
1 26 10x7 0.17
2 28 10x7 0.18
3 30 13.5x8 0.22
4 32 13.5x8 0.24
5 34 13.5x8 0.27
6 36 13.5x8 0.3
7 38 13.5x8 0.33
8 38 15x9 0.33
9 40 3.5x9.2 0.38
10 40 15x9.8 0.38
11 42 13.5x9.2 0.41
12 42 15x9.8 0.41
13 43 13.5x9.2 0.42
Cross Type Bit, 7 ° ,  11° , 12°
  Length (mm) Chisel Size (H x W) mm Weight (Kg)
1 30 12x12x8 0.29
2 32 12x12x8 0.31
3 33 12x12x8 0.33
4 34 12x12x8 0.34
5 35 12x12x8 0.36
6 36 13x12x8 0.37
7 38 14x12x8 0.43
8 40 15x12x8 0.47
9 41 15x12x8 0.49
10 42 15x12x8 0.51
11 43 15x12x8 0.53
12 45 17x14x8 0.58
13 48 17x14x8 0.67
14 50 19x14x8 0.72
15 55 20x16x10 0.92
16 60 20x16x10 1.19





Chisel Bit Integral Drill Steels Taper Drill Rod Hex19 - H22 Length 400-8000mm 0Chisel Bit Integral Drill Steels Taper Drill Rod Hex19 - H22 Length 400-8000mm 1Chisel Bit Integral Drill Steels Taper Drill Rod Hex19 - H22 Length 400-8000mm 2



1. Methods of Payment:



T/T (Telegraphic Transfer) or Western Union or L/C at sight



2. Handling time for an order



Based on order quantity, normally it takes 25 days for production.

Only 2 or 3 days if we have stock on your request size.



3. Shipping way



Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.



4. Quality Control



We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.



5. After Services:



1. Our sales team will response for your question within 24 hours (Holidays Excluded)

2. Technical Support will be available in any time

3. Free replacement will provide once the failure confirmed caused by our product quality







Company profile



KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
