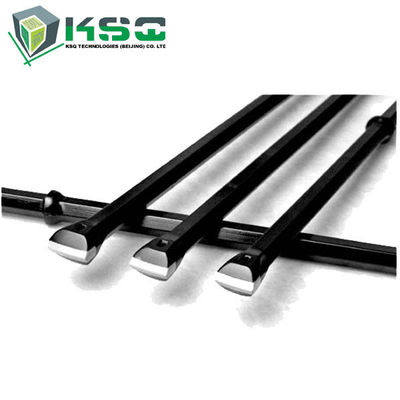

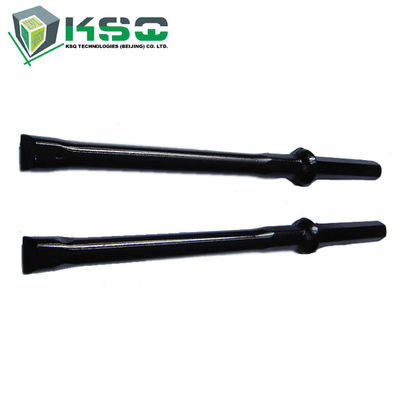

Integral Tungsten Carbide Rock Mining Drill Rod For Small Hole Drilling Tools

Integral Tungsten Carbide Rock Mining Drill Rod For Small Hole Drilling Tools

  • Integral Tungsten Carbide Rock Mining Drill Rod For Small Hole Drilling Tools
  • Integral Tungsten Carbide Rock Mining Drill Rod For Small Hole Drilling Tools
Integral Tungsten Carbide Rock Mining Drill Rod For Small Hole Drilling Tools
Product Details:
Place of Origin: Shangdong,China
Brand Name: MIROC
Certification: API
Model Number: Integral Drill Rod
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: negotiation
Packaging Details: Wooden Plate
Delivery Time: 10-25days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide Use: Tunneling, Mining,Quarrying,Construction
Processing Type: CNC Milling And Proprietary Heat Treatment Process Diameter: 29mm-41mm
Length: 400mm-8000mm
High Light:

stone drilling tools

,

integral drill rods

Integral Tungsten Carbide Rock Drill Rods For Small Hole Drilling Tools



Describtion



Integral drill rod or integral drill steels, integral rods are used by hand held rock drill in granite and marble quarries, underground mining, for small blasting hole drilling.



It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 19mm to 41mm usually. Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure high drilling performance.



Basic Information:



Product Name:

Integral Drill Rod

Shank

Shank 19mm x108mm, Shank22x108mm

Diameter

29mm-41mm

Length

400mm-8000mm

Material:

High strength alloy steel

Type

Chisel bit integral rod, Plug hole integral rod

Color

 Black or based on customer requirements.

MOQ:

No MOQ required for testing and trial order



specification



H19- Chisel Bit Integral Drill Steel - Shank 19 x108mm



Within the Dimensional Stone Quarrying Industry, hole sizes are generally quite small (Ø25-34mm) and are therefore too small to accommodate threaded equipment. H19 Chisel Bit Integral Rods with H19 x 108mm shank are suitable for the smaller hole ranges, between Ø25-27mm. Smallest available size is Ø23mm.



Length Bit Diameter Weight Part Number
mm foot mm kg
400 1 1/3 29 1.3 4148300000
500 1 2/3 29 1.5 4148300001
800 2 5/8 28 2.2 4148300002
1000 3 2/7 28 2.6 4148300003
1200 4    27 3 4148300004
1600 5 1/4 27 3.9 4148300005
2400 7 7/8 26 5.7 4148300006
3200 10 1/2 25 7.5 4148300007
4000 13 1/8 24 9.2 4148300008

400 1 1/3 24 1.3 4148300009
800 2 5/8 23 2.2 4148300010

600 2    27 1.7 4148300011
1200 4    26 3 4148300012
2000 6 5/9 24 4.8 4148300013
2400 7 7/8 24 5.7 4148300014
2700 8 6/7 24 6.3 4148300015

400 1 1/3 35 1.3 4148300016
800 2 5/8 34 2.2 4148300017



H19-Chisel Bit Integral Drill Steel - Shank 22 x108mm



Length Bit Diameter Weight Part Number
mm foot mm kg
400 1 1/3 24 1.5 4148300018
400 1 1/3 29 1.5 4148300019
600 2    27 1.7 4148300020
800 2 5/8 23 2.3 4148300021
800 2 5/8 28 2.3 4148300022
1200 4    23 3.2 4148300023
1600 5 1/4 27 4 4148300024
2000 6 5/9 28 5 4148300025
2400 7 7/8 26 5.8 4148300026
3200 10 1/2 25 7.5 4148300027



H22-Chisel Bit Integral Drill Steel - Shank 22 x108mm



The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.



Length Bit Diameter Weight Part Number
mm foot mm kg
800 2 5/8 34 3 4148300035
1600 5 1/4 33 5.2 4148300036
2400 7 7/8 32 8 4148300037
3200 10 1/2 31 10.2 4148300038
4000 13 1/8 30 12.9 4148300039
4800 15 3/4 29 15.1 4148300040
5600 18 3/8 28 17.6 4148300041
6400 21    27 20.1 4148300042
7200 23 5/8 26 22.5 4148300043

800 2 5/8 40 3 4148300044
1600 5 1/4 39 5.2 4148300045
2400 7 7/8 38 8 4148300046
3200 10 1/2 37 10.2 4148300047
4000 13 1/8 36 12.9 4148300048
4800 15 3/4 35 15.1 4148300049
5600 18 3/8 34 17.6 4148300050
6400 21    33 20.1 4148300051
7200 23 5/8 32 22.5 4148300052
8000 26 1/4 31 25 4148300053

400 1 1/3 34 1.7 4148300054
800 2 5/8 33 3 4148300055
1200 4    32 4.1 4148300056
1600 5 1/4 31 5.2 4148300057
2000 6 5/9 30 6.7 4148300058

600 2    41 2.4 4148300059
1200 4    40 4.3 4148300060
1800 6    39 6.2 4148300061
2400 7 7/8 38 8 4148300062

400 1 1/3 41 1.7 4148300063
800 2 5/8 29 3 4148300064
800 2 5/8 38 3.1 4148300065
1200 4    39 4.3 4148300066
1600 5 1/4 36 5.2 4148300067
1800 6    36 6 4148300068
2000 6 5/9 32 6.7 4148300069
2400 7 7/8 27 8 4148300070
3200 10 1/2 27 10.2 4148300071
3200 10 1/2 32 10.3 4148300072
6400 21    30 20.1 4148300073
8000 26 1/4 26 25 4148300074




Integral Tungsten Carbide Rock Mining Drill Rod For Small Hole Drilling Tools 0

Our Services



KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due to physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
Company Information


KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
