| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | SGS Certification |
| Model Number: | Integral Rod with Chisel Bit |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 30000 Per Month |
| Color:: | Black | Material: | Hollow Steel Rod With Chisel Tungsten Carbide |
|---|---|---|---|
| Application: | Tunnel, Quarry, Bench Rock Drilling | ||
| High Light: | tungsten carbide rod,integral drill rods |
||

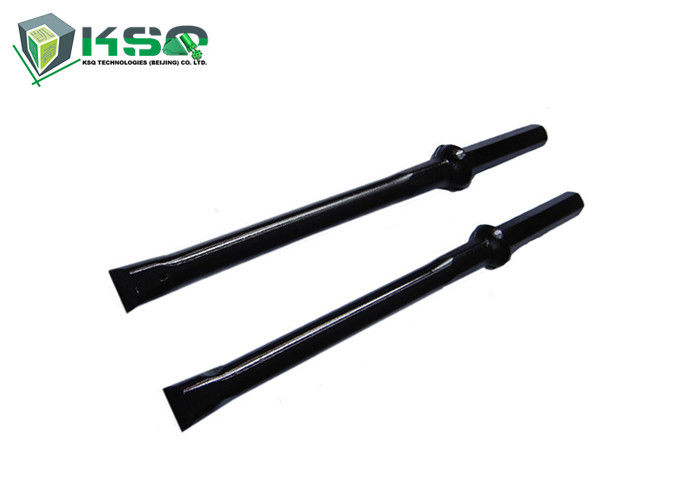

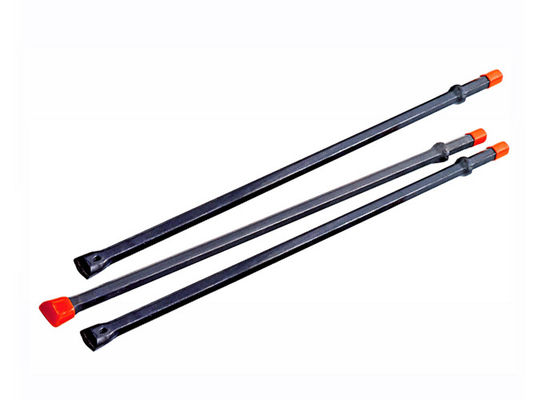

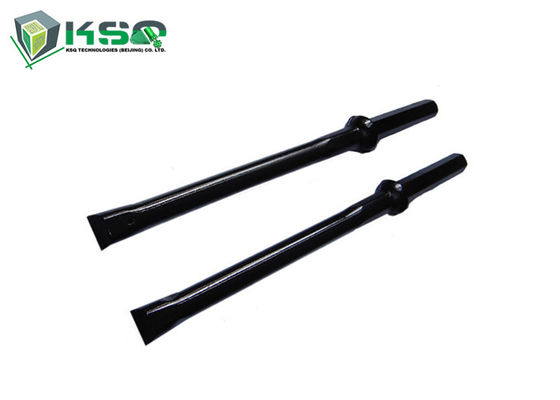

Name: Integral Drill Rod
Brand:MIROC
Original: China
The Hex22 Integral drills steels, Hex22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry.
Shank: Hex22x108mm
Length: 400mm-8000mm
Chisel bit diameter: 26mm-41mm
Integral Steel Rod is used by a hand held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually.
| Length Dia. Weight Part Number Produce Code |
| mm ft mm kg |
| 800 2 5/8 34 3 4148300035 IH22-C34-800 |
| 1600 5 1/4 33 5.2 4148300036 IH22-C33-1600 |
| 2400 7 7/8 32 8 4148300037 IH22-C32-2400 |
| 3200 10 1/2 31 10.2 4148300038 IH22-C31-3200 |
| 4000 13 1/8 30 12.9 4148300039 IH22-C30-4000 |
| 4800 15 3/4 29 15.1 4148300040 IH22-C29-4800 |
| 5600 18 3/8 28 17.6 4148300041 IH22-C28-5600 |
| 6400 21 27 20.1 4148300042 IH22-C27-6400 |
| 7200 23 5/8 26 22.5 4148300043 IH22-C26-7200 |
| 800 2 5/8 40 3 4148300044 IH22-C40-800 |
| 1600 5 1/4 39 5.2 4148300045 IH22-C39-1600 |
| 2400 7 7/8 38 8 4148300046 IH22-C38-2400-1 |
| 3200 10 1/2 37 10.2 4148300047 IH22-C37-3200 |
| 4000 13 1/8 36 12.9 4148300048 IH22-C36-4000 |
| 4800 15 3/4 35 15.1 4148300049 IH22-C35-4800 |
| 5600 18 3/8 34 17.6 4148300050 IH22-C34-5600 |
| 6400 21 33 20.1 4148300051 IH22-C33-6400 |
| 7200 23 5/8 32 22.5 4148300052 IH22-C32-7200 |
| 8000 26 1/4 31 25 4148300053 IH22-C31-8000 |
