Product Details:
Payment & Shipping Terms:
|
Material: | Tungsten Carbide | Use: | Tunneling, Mining,Quarrying,Construction |
---|---|---|---|
Processing Type: | CNC Milling And Proprietary Heat Treatment Process | Type: | Tapered Integral Drill Rods |
Equiped: | With Pneumatic & Gasoline Rock Drill | Length: | 400/500/800/1000/1200/1600/2000/3200/4000mm |
High Light: | tungsten carbide rod,stone drilling tools |
H19 (3/4") Integral Chisel and Plug Hole Drill Steel Rod For Mining Quarrying Rock Drilling Tools
Describtion
Our factory can offer many kinds of drill bits, including chisel type bits, cross type bits, tapered drill rods and integral drill rods, mainly used for mining, coal cutting, tunneling, rock cutting in quarrying.
Integral Drill Steel is used by a hand held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually. Regarding Integral drill steels, the quality of a steel material and a tungsten carbide is very important to get good drilling performance.
According to different application, different lengths are available from 400mm to 5000mm usually.
specification
(1)Material:55SiMnMo
(2)Shank size:hex19/22/25mm including plug hole rods
(3)Bit Dia:30-41mm
(4)Length:0.4m-5m...
(5)Package:wooden case/bundles/crate
Chisel Bit Integral Drill Steel | |||||
Shank 19 x 108 mm (3/4” x 4 1/4”) | |||||
Length (mm) | Bit Diameter (mm) | PN. | |||
1 | 400 | 29 | 4148300000 | ||
2 | 500 | 29 | 4148300001 | ||
3 | 800 | 28 | 4148300002 | ||
4 | 1000 | 28 | 4148300003 | ||
5 | 1200 | 27 | 4148300004 | ||
6 | 1600 | 27 | 4148300005 | ||
7 | 2400 | 26 | 4148300006 | ||
8 | 3200 | 25 | 4148300007 | ||
9 | 4000 | 24 | 4148300008 | ||
10 | 400 | 24 | 4148300009 | ||
11 | 800 | 23 | 4148300010 | ||
12 | 600 | 27 | 4148300011 | ||
13 | 1200 | 24 | 4148300012 | ||
14 | 2000 | 24 | 4148300013 | ||
15 | 2400 | 24 | 4148300014 | ||
16 | 2700 | 24 | 4148300015 | ||
17 | 400 | 35 | 4148300016 | ||
18 | 800 | 34 | 4148300017 | ||

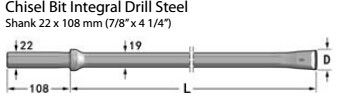

Chisel Bit Integral Drill Steel | |||||
Shank 22 x 108 mm (7/8” x 4 1/4”) | |||||
Length (mm) | Bit Diameter (mm) | PN. | |||
1 | 400 | 24 | 4148300018 | ||
2 | 400 | 29 | 4148300019 | ||
3 | 600 | 27 | 4148300020 | ||
4 | 800 | 23 | 4148300021 | ||
5 | 800 | 28 | 4148300022 | ||
6 | 1200 | 23 | 4148300023 | ||
7 | 1600 | 27 | 4148300024 | ||
8 | 2000 | 28 | 4148300025 | ||
9 | 2400 | 26 | 4148300026 | ||
10 | 3200 | 25 | 4148300027 | ||
Plug Hole Integral Drill Steel | |||||
Shank 19 x 108 mm (3/4” x 4 1/4”) | |||||
Length (mm) | Bit Diameter (mm) | PN. | |||
1 | 210 | 17 | 4148300028 | ||
2 | 210 | 20 | 4148300029 | ||
3 | 210 | 22 | 4148300030 | ||
4 | 260 | 20 | 4148300031 | ||
5 | 260 | 22 | 4148300032 | ||
6 | 310 | 22 | 4148300033 | ||
7 | 340 | 20 | 4148300034 |
